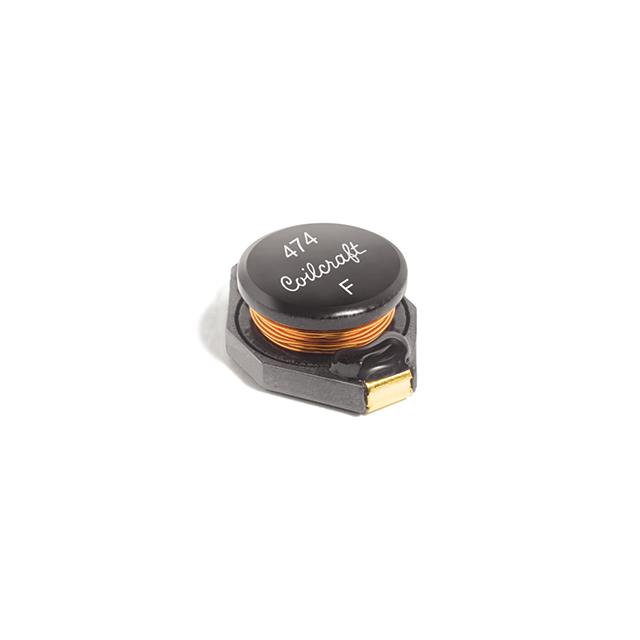

DO3316P Series
Manufacturer: Coilcraft
Beta
⌘K
POWER INDUCTORS - SMD 10UH UNSHLD 20% 3.9A 38MOHMS
| Part | Type | DC Resistance (DCR) | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Material - Core | Inductance Frequency - Test | Frequency - Self Resonant | Tolerance | Current - Saturation (Isat) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Shielding | Current Rating (Amps) | Inductance | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coilcraft | Drum Core | 38 mOhm | 85 °C | -40 C | 5.21 mm | 0.205 in | Ferrite | 100 kHz | 30 MHz | 20 % | 3.8 A | 9.4 mm | 0.37 in | 12.95 mm | 0.51 " | Nonstandard | Unshielded | 3.9 A | 10 µH | Surface Mount |
