W63 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

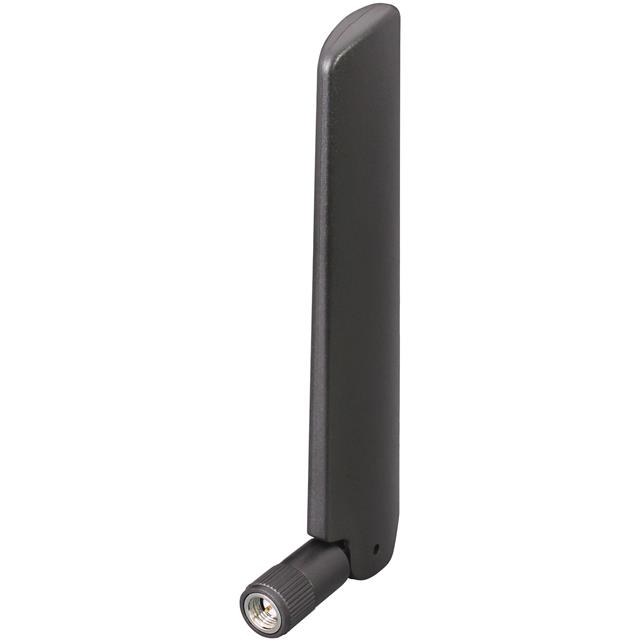

ANTENNAS RF ANTENNA WIFI7/WIFI 6/WIFI6E 2.4GHZ, 5GHZ, 6GHZ WLAN HINGED BLADE, SMA MALE CONNECTOR
| Part | Frequency Group | Power - Max [Max] | VSWR | Antenna Type | Height (Max) [z] | Height (Max) [z] | Frequency (Center/Band) | RF Family/Standard | Number of Bands | Mounting Type | Frequency Range [Max] | Frequency Range [Min] | Applications | Gain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | SHF UHF | 10 W | 1.3 2 2.1 | Blade Tilt | 5.339 in | 135.6 mm | 2.44 GHz 5.025 GHz 5.5 GHz | 802.15.4 Bluetooth WiFi | 3 | Connector Mount | 5.85 GHz 7.125 GHz 2485 MHz | 2.4 GHz 5.15 GHz 5.925 GHz | 802.11ac/ax/be/b/g/n Bluetooth WLAN Zigbee™ | 4 dBi 4.9 dBic 8.4 dBi |
