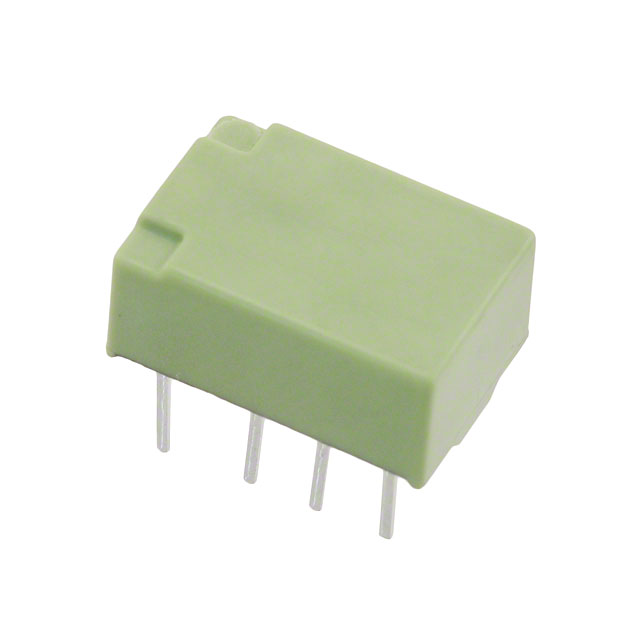

AGQ210 Series

Manufacturer: Panasonic Electronic Components

Catalog

RELAY GEN PURPOSE DPDT 2A 1.5V

Part	Load - Max Switching	Coil Resistance	Coil Current	Termination Style	Contact Material	Approval Agency	Must Operate Voltage	Seal Rating	Contact Form	Relay Type	Contact Rating (Current)	Operate Time	Coil Voltage	Coil Type	Release Time	Switching Voltage [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Panasonic Electronic Components AGQ210S1HY	37.5 VA 60 W 110 W 125 VA	22.5 Ohms	66.7 mA	Gull Wing	Gold (Au) Silver Palladium (AgPd)	BSI cURus	1.13 VDC	Sealed - Fully	DPDT (2 Form C)	General Purpose	2 A	4 ms	1.5 VDC	Latching Single Coil	4 ms	110 VDC 125 VAC	Surface Mount	85 °C	-40 C
Panasonic Electronic Components AGQ210S12Y	37.5 VA 60 W 110 W 125 VA	1440 Ohms	8.3 mA	Gull Wing	Gold (Au) Silver Palladium (AgPd)	BSI cURus	9 VDC	Sealed - Fully	DPDT (2 Form C)	General Purpose	2 A	4 ms	12 VDC	Latching Single Coil	4 ms	110 VDC 125 VAC	Surface Mount	85 °C	-40 C
Panasonic Electronic Components AGQ210S09W	37.5 VA 60 W 110 W 125 VA	810 Ohms	11.1 mA	Gull Wing	Gold (Au) Silver Palladium (AgPd)	BSI cURus	6.75 VDC	Sealed - Fully	DPDT (2 Form C)	General Purpose	2 A	4 ms	9 VDC	Latching Single Coil	4 ms	110 VDC 125 VAC	Surface Mount	85 °C	-40 C
Panasonic Electronic Components AGQ210S1H	37.5 VA 60 W 110 W 125 VA	22.5 Ohms	66.7 mA	Gull Wing	Gold (Au) Silver Palladium (AgPd)	BSI cURus	1.13 VDC		DPDT (2 Form C)	Telecom	2 A	4 ms	1.5 VDC	Latching Single Coil	4 ms	110 VDC 125 VAC	Surface Mount	85 °C	-40 C
Panasonic Electronic Components AGQ210A4HW	37.5 VA 60 W 110 W 125 VA	202.5 Ohms	22.2 mA	Gull Wing	Gold (Au) Silver Palladium (AgPd)	BSI cURus	3.38 VDC	Sealed - Fully	DPDT (2 Form C)	General Purpose	2 A	4 ms	4.5 VDC	Latching Single Coil	4 ms	110 VDC 125 VAC	Surface Mount	85 °C	-40 C
Panasonic Electronic Components AGQ210A12W	37.5 VA 60 W 110 W 125 VA	1440 Ohms	8.3 mA	Gull Wing	Gold (Au) Silver Palladium (AgPd)	BSI cURus	9 VDC	Sealed - Fully	DPDT (2 Form C)	General Purpose	2 A	4 ms	12 VDC	Latching Single Coil	4 ms	110 VDC 125 VAC	Surface Mount	85 °C	-40 C
Panasonic Electronic Components AGQ210A1HZ	37.5 VA 60 W 110 W 125 VA	22.5 Ohms	66.7 mA	Gull Wing	Gold (Au) Silver Palladium (AgPd)	BSI cURus	1.13 VDC		DPDT (2 Form C)	Telecom	2 A	4 ms	1.5 VDC	Latching Single Coil	4 ms	110 VDC 125 VAC	Surface Mount	85 °C	-40 C
Panasonic Electronic Components AGQ210S06Z	37.5 VA 60 W 110 W 125 VA	257 Ohms	16.7 mA	Gull Wing	Gold (Au) Silver Palladium (AgPd)	BSI cURus	4.5 VDC		DPDT (2 Form C)	Telecom	2 A	4 ms		Latching Single Coil	4 ms	110 VDC 125 VAC	Surface Mount	85 °C	-40 C
Panasonic Electronic Components AGQ210S09Z	37.5 VA 60 W 110 W 125 VA	810 Ohms	11.1 mA	Gull Wing	Gold (Au) Silver Palladium (AgPd)	BSI cURus	6.75 VDC		DPDT (2 Form C)	Telecom	2 A	4 ms	9 VDC	Latching Single Coil	4 ms	110 VDC 125 VAC	Surface Mount	85 °C	-40 C
Panasonic Electronic Components AGQ21012	37.5 VA 60 W 110 W 125 VA	1440 Ohms	8.3 mA	PC Pin	Gold (Au) Silver Palladium (AgPd)	BSI cURus	9 VDC		DPDT (2 Form C)	Telecom	2 A	4 ms	12 VDC	Latching Single Coil	4 ms	110 VDC 125 VAC	Through Hole	85 °C	-40 C
