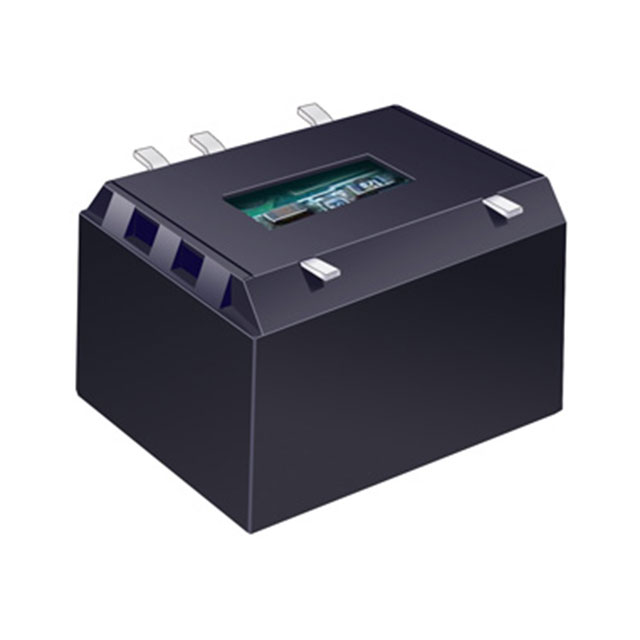

R2S Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - SMD 2W DC/DC 3KV UNREG 24VIN 3.3VOUT
| Part | Features | Type | Current - Output (Max) [Max] | Voltage - Output 1 | Voltage - Isolation | Efficiency [Max] | Efficiency [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Input (Max) [Max] | Applications | Mounting Type | Power (Watts) | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | SCP | Isolated Module | 606 mA | 3.3 V | 3000 V | 75 % | 70 % | 15.2 mm | 0.35 in | 10.7 mm | 0.6 " | 0.42 " | 9 mm | 12-SMD Module 10 Leads | -40 C | 100 °C | 21.6 V | 1 | 26.4 V | ITE (Commercial) Medical | Surface Mount | 2 W | |
 Recom Power | SCP | Isolated Module | 83 mA | 24 V | 3000 V | 12.8 mm | 0.35 in | 10.7 mm | 0.5 " | 0.42 " | 9 mm | 8-SMD Module 5 Leads | -40 C | 100 °C | 10.8 V | 1 | 13.2 V | ITE (Commercial) Medical | Surface Mount | 2 W | 85 % | ||
 Recom Power | SCP | Isolated Module | 83 mA | 24 V | 3000 V | 15.2 mm | 0.35 in | 10.7 mm | 0.6 " | 0.42 " | 9 mm | 12-SMD Module 10 Leads | -40 C | 100 °C | 13.5 V | 1 | 16.5 V | ITE (Commercial) Medical | Surface Mount | 2 W | 85 % | ||
 Recom Power | SCP | Isolated Module | 400 mA | 5 V | 3000 V | 12.8 mm | 0.35 in | 10.7 mm | 0.5 " | 0.42 " | 9 mm | 8-SMD Module 5 Leads | -40 C | 100 °C | 4.5 V | 1 | 5.5 V | ITE (Commercial) Medical | Surface Mount | 2 W | 85 % | ||
Recom Power | SCP | Isolated Module | 83 mA | 24 V | 1000 V | 12.8 mm | 0.35 in | 10.7 mm | 0.5 " | 0.42 " | 9 mm | 8-SMD Module 5 Leads | -40 C | 100 °C | 4.5 V | 1 | 5.5 V | ITE (Commercial) | Surface Mount | 2 W | 85 % | ||
Recom Power | SCP | Isolated Module | 83 mA | 24 V | 1000 V | 15.2 mm | 0.35 in | 10.7 mm | 0.6 " | 0.42 " | 9 mm | 12-SMD Module 10 Leads | -40 C | 100 °C | 21.6 V | 1 | 26.4 V | ITE (Commercial) | Surface Mount | 2 W | 85 % | ||
Recom Power | SCP | Isolated Module | 133 mA | 15 V | 3000 V | 12.8 mm | 0.35 in | 10.7 mm | 0.5 " | 0.42 " | 9 mm | 8-SMD Module 5 Leads | -40 C | 100 °C | 13.5 V | 1 | 16.5 V | ITE (Commercial) Medical | Surface Mount | 2 W | 85 % | ||
Recom Power | SCP | Isolated Module | 42 mA | 24 V | 1000 V | 12.8 mm | 0.35 in | 10.7 mm | 0.5 " | 0.42 " | 9 mm | 8-SMD Module | -40 C | 100 °C | 13.5 V | 1 | 16.5 V | ITE (Commercial) | Surface Mount | 2 W | 85 % | ||
Recom Power | SCP | Isolated Module | 222 mA | 9 V | 3000 V | 12.8 mm | 0.35 in | 10.7 mm | 0.5 " | 0.42 " | 9 mm | 8-SMD Module 5 Leads | -40 C | 100 °C | 21.6 V | 1 | 26.4 V | ITE (Commercial) Medical | Surface Mount | 2 W | 85 % | ||
Recom Power | SCP | Isolated Module | 606 mA | 3.3 V | 1000 V | 75 % | 70 % | 12.8 mm | 0.35 in | 10.7 mm | 0.5 " | 0.42 " | 9 mm | 8-SMD Module | -40 C | 100 °C | 4.5 V | 1 | 5.5 V | ITE (Commercial) | Surface Mount | 2 W |
