USxx Series

Catalog

RECTIFIERS ULTRAFAST, SMC, 600V, 3A, 150C

Part	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Reverse Recovery Time (trr)	Speed	Supplier Device Package	Current - Average Rectified (Io)	Package / Case	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Qualification	Grade
Diotec Semiconductor US3J	5 µA	1.7 V	600 V	150 °C	-50 °C	Standard	75 ns	200 mA 500 ns	DO-214AB (SMC)	3 A	DO-214AB SMC	Surface Mount
Diotec Semiconductor US1M	5 µA 5 µA		1000 V	150 °C	-50 °C	Standard	75 ns	200 mA 500 ns	DO-214AC (SMA)	1 A	DO-214AC SMA	Surface Mount	1.7 V
Diotec Semiconductor UST1B	5 µA	1 V	100 V	150 °C	-50 °C	Standard	50 ns	200 mA 500 ns	DO-214AC (SMA)	1 A	DO-214AC SMA	Surface Mount
Diotec Semiconductor USL1B-AQ	1 µA	1 V	100 V	150 °C	-50 °C	Standard	50 ns	200 mA 500 ns	SOD-123FL	1 A	SOD-123F	Surface Mount		AEC-Q101	Automotive

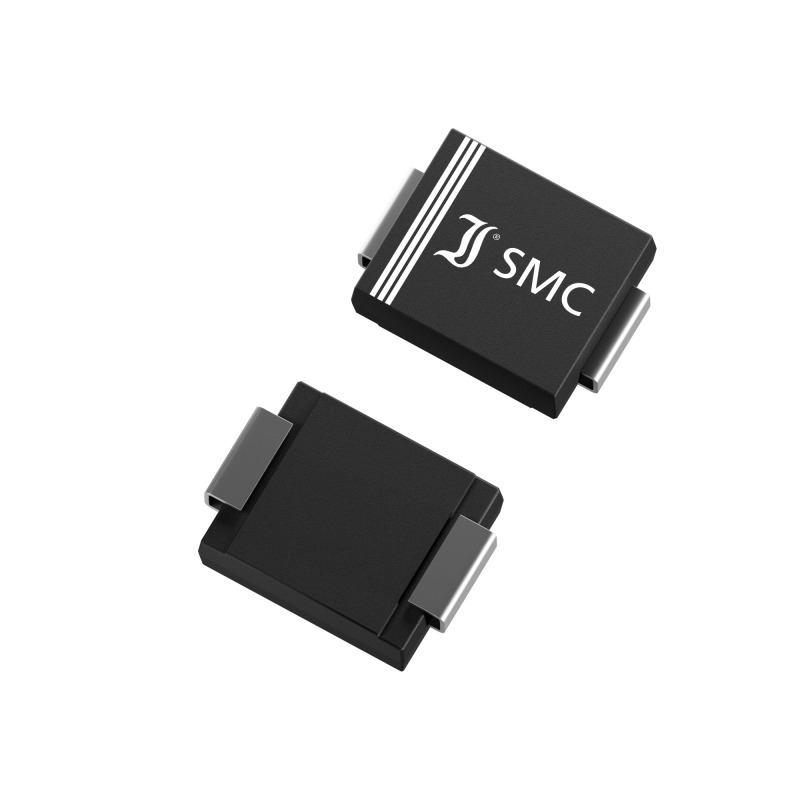

Diotec Semiconductor US3M	5 µA	1.7 V	1000 V	150 °C	-50 °C	Standard	75 ns	200 mA 500 ns	DO-214AB (SMC)	3 A	DO-214AB SMC	Surface Mount
