CPI-4233 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
PIEZO BUZZERS & AUDIO INDICATORS BUZZER 42.5MM RND 2.8KHZ 12V SCREWS
| Part | Mounting Type | Technology | Termination | Termination | Termination | Size / Dimension [diameter] | Size / Dimension [diameter] | Port Location | Height - Seated (Max) [Max] [z] | Height - Seated (Max) | Sound Pressure Level (SPL) | Driver Circuitry | Operating Temperature [Max] | Operating Temperature [Min] | Input Type | Voltage Range [Min] | Voltage Range [Max] | Operating Mode | Current - Supply | Frequency | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

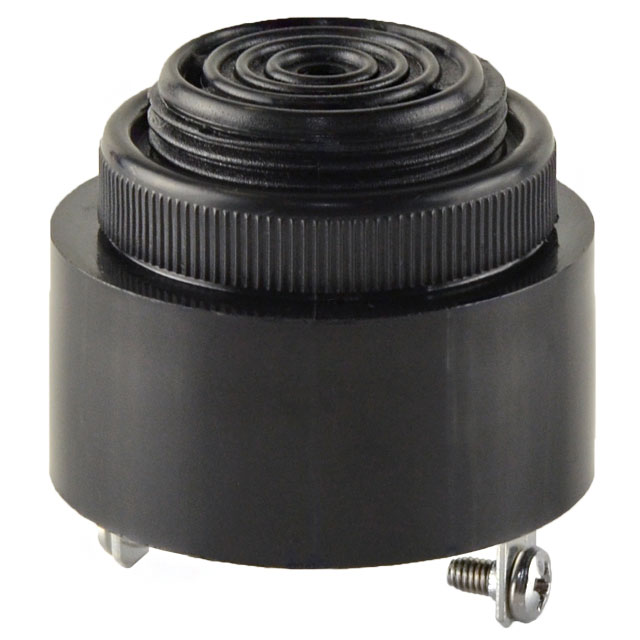

 Same Sky (Formerly CUI Devices) | Panel Mount | Piezo | 0.256 " | Quick Connect Tab Screw Terminal | 6.5 mm | 42.5 mm | 1.673 " | Top | 1.319 in | 33.5 mm | 94 dB | Indicator Internally Driven | 85 °C | -30 ░C | DC | 6 VDC | 28 V | Single Tone | 12 mA | 2.8 kHz | 12 VDC |
Same Sky (Formerly CUI Devices) | Panel Mount | Piezo | 0.256 " | Quick Connect Tab Screw Terminal | 6.5 mm | 42.5 mm | 1.673 " | Top | 1.319 in | 33.5 mm | 94 dB | Indicator Internally Driven | 85 °C | -30 ░C | DC | 6 VDC | 28 V | Single Tone | 12 mA | 2.8 kHz | 12 VDC |

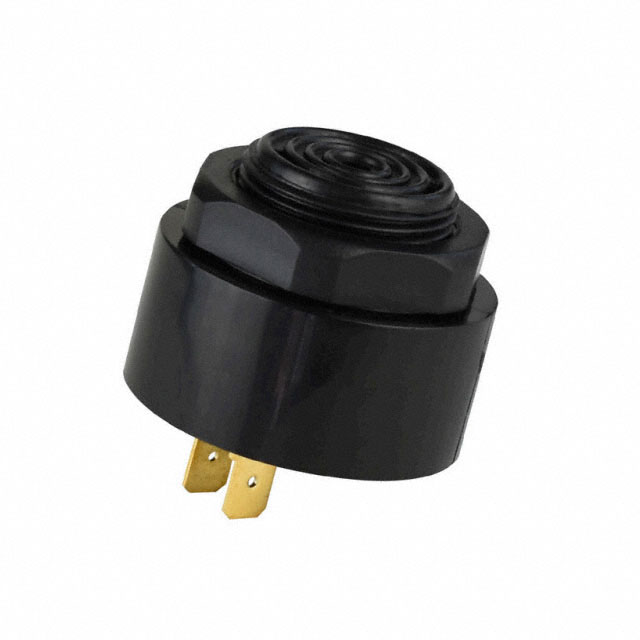

 Same Sky (Formerly CUI Devices) | Panel Mount | Piezo | 0.256 " | Quick Connect Tab | 6.5 mm | 42.5 mm | 1.673 " | Top | 1.319 in | 33.5 mm | 87 dB | Indicator Internally Driven | 85 °C | -30 ░C | DC | 6 VDC | 28 V | Fast Pulse | 9 mA | 2.8 kHz | 12 VDC |
