W3P35X8 Series
Manufacturer: KYOCERA AVX
Beta
⌘K

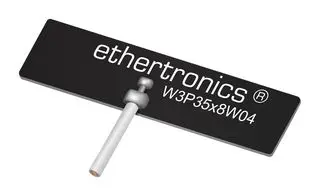

PCB ANTENNA, 5.925-7.125GHZ, 2.5DBI ROHS COMPLIANT: YES
| Part | Termination | Mounting Type | Frequency Range [Min] | Frequency Range [Max] | RF Family/Standard | Return Loss | Features | Features | Height (Max) [z] | Height (Max) [z] | Frequency (Center/Band) | Applications | Frequency Group | Antenna Type | Number of Bands | Gain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | U.FL | Adhesive | 2.4 GHz 5.15 GHz 5.825 GHz | 2.48 GHz 5.85 GHz 7.125 GHz | 802.15.4 Bluetooth WiFi | -15 dB -10 dB -6 dB | Cable | 100 mm | 0.4 mm | 0.016 in | 2.44 GHz 5.5 GHz 6.475 GHz | Bluetooth Wi-Fi WLAN Zigbee™ | Wide Band | PCB Trace | 3 | 2.3 dBi 2.5 dBi 5 dBi |
