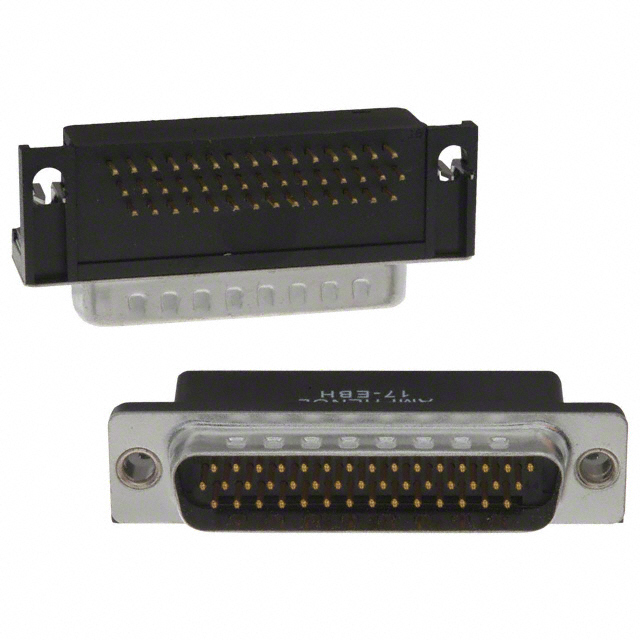

17EBH044 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB HD RCPT 44P R/A SLDR
| Part | Contact Material | Dielectric Material | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Material Flammability Rating | Current Rating (Amps) | Backset Spacing | Backset Spacing | Contact Finish | Features | Connector Type | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Flange Feature | Flange Feature | Contact Type | Shell Material, Finish | Termination | Number of Positions | Connector Style | Mounting Type | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Stamped | -55 C | 105 ░C | Black | 125 VDC | UL94 V-0 | 3 A | 8.89 mm | 0.35 in | Gold | Board Lock | Receptacle Female Sockets | 3 | 30 Áin | 0.76 Ám | 3 | Housing/Shell | 4-40 | Signal | Nickel Plated Steel | Solder | 44 | D-Sub High Density | Right Angle Through Hole | |
Amphenol ICC (Commercial Products) | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Stamped | -55 C | 105 ░C | Black | 125 VDC | UL94 V-0 | 3 A | 8.89 mm | 0.35 in | Gold | Board Lock | Receptacle Female Sockets | 3 | 30 Áin | 0.76 Ám | 3 | 4-40 Mating Side Female Screwlock | Signal | Nickel Plated Steel | Solder | 44 | D-Sub High Density | Right Angle Through Hole | ||
 Amphenol ICC (Commercial Products) | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Stamped | -55 C | 105 ░C | Black | 125 VDC | UL94 V-0 | 3 A | 8.89 mm | 0.35 in | Gold | Board Lock Grounding Indents | Plug Male Pins | 3 | 3 | Housing/Shell | 4-40 | Signal | Nickel Plated Steel | Solder | 44 | D-Sub High Density | Right Angle Through Hole | Flash | ||
 Amphenol ICC (Commercial Products) | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Stamped | -55 C | 105 ░C | Black | 125 VDC | UL94 V-0 | 3 A | 8.89 mm | 0.35 in | Gold | Board Lock Grounding Indents | Plug Male Pins | 3 | 30 Áin | 0.76 Ám | 3 | Housing/Shell (Unthreaded) | Signal | Nickel Plated Steel | Solder | 44 | D-Sub High Density | Right Angle Through Hole | ||
Amphenol ICC (Commercial Products) | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Stamped | -55 C | 105 ░C | Black | 125 VDC | UL94 V-0 | 3 A | 8.89 mm | 0.35 in | Gold | Board Lock | Receptacle Female Sockets | 3 | 3 | Housing/Shell | 4-40 | Signal | Nickel Plated Steel | Solder | 44 | D-Sub High Density | Right Angle Through Hole | Flash | ||
 Amphenol ICC (Commercial Products) | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Stamped | -55 C | 105 ░C | Black | 125 VDC | UL94 V-0 | 3 A | 8.89 mm | 0.35 in | Gold | Board Lock Grounding Indents | Plug Male Pins | 3 | 30 Áin | 0.76 Ám | 3 | 4-40 Mating Side Female Screwlock | Signal | Nickel Plated Steel | Solder | 44 | D-Sub High Density | Right Angle Through Hole |
