RUMF21 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

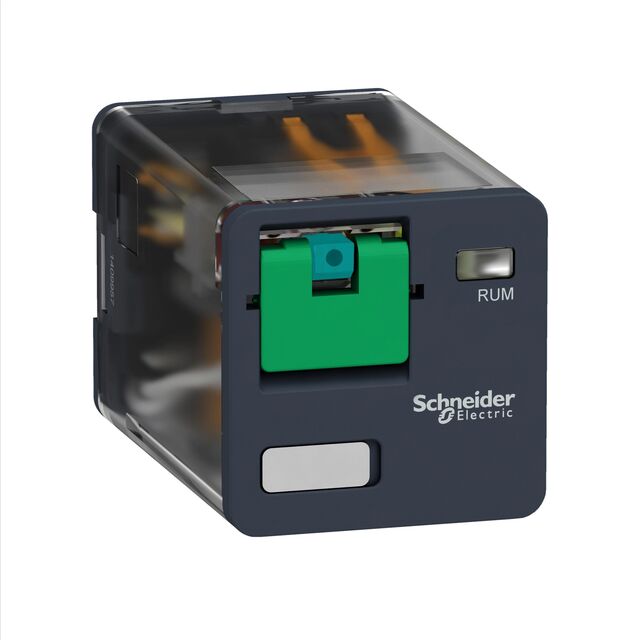

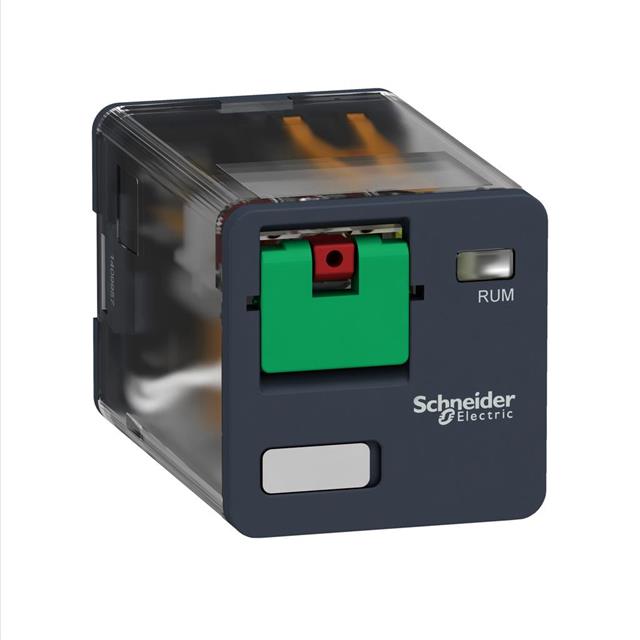

HARMONY, UNIVERSAL PLUG-IN RELAY
| Part | Coil Resistance | Must Release Voltage | Contact Form | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Coil Current | Switching Voltage [Max] | Mounting Type | Approval Agency | Features | Must Operate Voltage | Release Time | Contact Material | Contact Rating (Current) | Operate Time | Coil Type | Termination Style | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 1.7 kOhms | 18 VAC | DPDT (2 Form C) | General Purpose | 55 °C | -40 C | 120 VAC | 70.6 mA | 28 VDC 250 VAC | Socketable | CSA EAC UL | Test Button | 96 VAC | 20 ms | Silver Nickel (AgNi) | 10 A | 20 ms | Non Latching | Plug In | 280 W 2500 VA |
 SCHNEIDER ELECTRIC | 7.3 kOhms | 11 VDC | DPDT (2 Form C) | General Purpose | 55 °C | -40 C | 110 VDC | 15.1 mA | 28 VDC 250 VAC | Socketable | CSA EAC UL | Test Button | 88 VDC | 20 ms | Silver Nickel (AgNi) | 10 A | 20 ms | Non Latching | Plug In | 280 W 2500 VA |
 SCHNEIDER ELECTRIC | 470 Ohms | 2.4 VDC | DPDT (2 Form C) | General Purpose | 55 °C | -40 C | 24 VDC | 51.1 mA | 28 VDC 250 VAC | Socketable | CSA EAC UL | Test Button | 19.2 VDC | 20 ms | Silver Nickel (AgNi) | 10 A | 20 ms | Non Latching | Plug In | 280 W 2500 VA |
SCHNEIDER ELECTRIC | 120 Ohms | 1.2 VDC | DPDT (2 Form C) | General Purpose | 55 °C | -40 C | 12 VDC | 0.1 A | 28 VDC 250 VAC | Socketable | CSA EAC UL | Test Button | 9.6 VDC | 20 ms | Silver Nickel (AgNi) | 10 A | 20 ms | Non Latching | Plug In | 280 W 2500 VA |
