JWK105B Series

Catalog

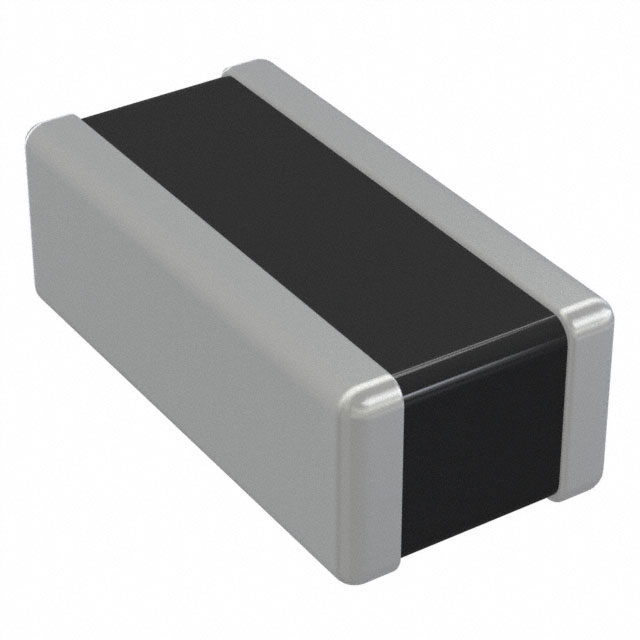

CAP CER 1UF 6.3V X5R 0204

Part	Applications	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Temperature Coefficient	Voltage - Rated	Tolerance
Taiyo Yuden JWK105BJ105MV-F	Bypass Decoupling	MLCC Surface Mount	0.35 mm	0.014 "	0204 (0510 Metric)	1 mm	0.02 in	0.52 mm	0.039 in	Low ESL (Reverse Geometry)	-55 C	85 °C	1 µF	X5R	6.3 VDC	20 %
Taiyo Yuden JWK105BJ225MP-F	Bypass Decoupling	MLCC Surface Mount	0.35 mm	0.014 "	0204 (0510 Metric)	1 mm	0.02 in	0.52 mm	0.039 in	Low ESL	-55 C	85 °C	2.2 µF	X5R	6.3 VDC	20 %
Taiyo Yuden JWK105BJ104MP-F	Bypass Decoupling	MLCC Surface Mount	0.35 mm	0.014 "	0204 (0510 Metric)	1 mm	0.02 in	0.52 mm	0.039 in	Low ESL	-55 C	85 °C	100000 pF	X5R	6.3 VDC	20 %
