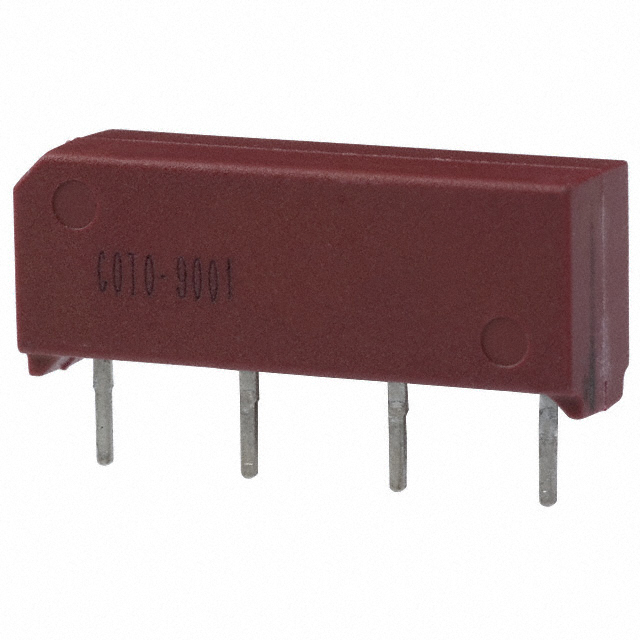

9001 Series

Catalog

REED RELAY, SPST-NO, 12 VDC, 9000 SERIES, THROUGH HOLE, 1 KOHM, 500 MA

Part	Coil Resistance	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage [Max]	Coil Current	Coil Type	Mounting Type	Must Operate Voltage	Features	Release Time	Coil Voltage	Contact Form	Must Release Voltage	Termination Style	Operate Time
COTO TECHNOLOGY 9001-12-11	1 kOhms	0.5 A	85 °C	-20 ░C	200 VDC 200 VAC	12 mA	Non Latching	Through Hole	9 VDC	Diode EMI Shielded	0.1 ms	12 VDC	SPST-NO (1 Form A)	1 VDC	PC Pin	0.35 ms
COTO TECHNOLOGY 9001-05-01	500 Ohms	0.5 A	85 °C	-20 ░C	200 VDC 200 VAC	10 mA	Non Latching	Through Hole	3.75 VDC	Diode	0.1 ms	5 VDC	SPST-NO (1 Form A)	0.4 VDC	PC Pin	0.35 ms

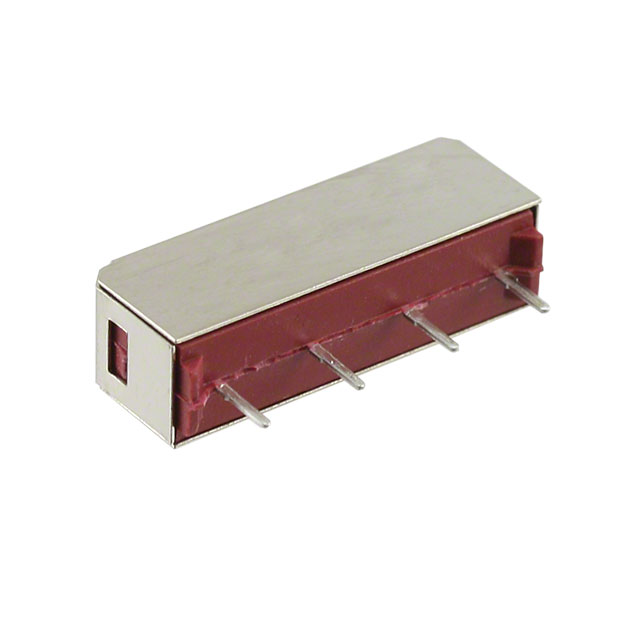

COTO TECHNOLOGY 9001-05-10	500 Ohms	0.5 A	85 °C	-20 ░C	200 VDC 200 VAC	10 mA	Non Latching	Through Hole	3.75 VDC	EMI Shielded	0.1 ms	5 VDC	SPST-NO (1 Form A)	0.4 VDC	PC Pin	0.35 ms
COTO TECHNOLOGY 9001-12-01	1 kOhms	0.5 A	85 °C	-20 ░C	200 VDC 200 VAC	12 mA	Non Latching	Through Hole	9 VDC	Diode	0.1 ms	12 VDC	SPST-NO (1 Form A)	1 VDC	PC Pin	0.35 ms

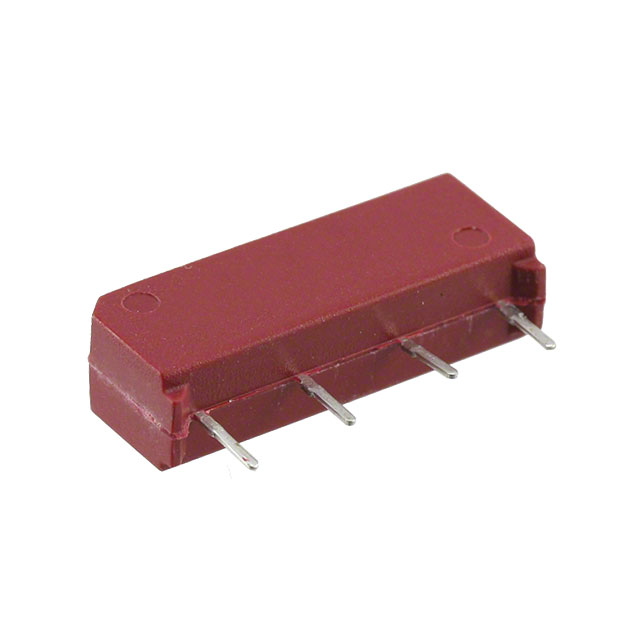

COTO TECHNOLOGY 9001-05-02	500 Ohms	0.5 A	85 °C	-20 ░C	200 VDC 200 VAC	10 mA	Non Latching	Through Hole	3.75 VDC		0.1 ms	5 VDC	SPST-NC (1 Form B)	0.4 VDC	PC Pin	0.35 ms
COTO TECHNOLOGY 9001-05-00	500 Ohms	0.5 A	85 °C	-20 ░C	200 VDC 200 VAC	10 mA	Non Latching	Through Hole	3.75 VDC		0.1 ms	5 VDC	SPST-NO (1 Form A)	0.4 VDC	PC Pin	0.35 ms
COTO TECHNOLOGY 9001-12-00	1 kOhms	0.5 A	85 °C	-20 ░C	200 VDC 200 VAC	12 mA	Non Latching	Through Hole	9 VDC		0.1 ms	12 VDC	SPST-NO (1 Form A)	1 VDC	PC Pin	0.35 ms

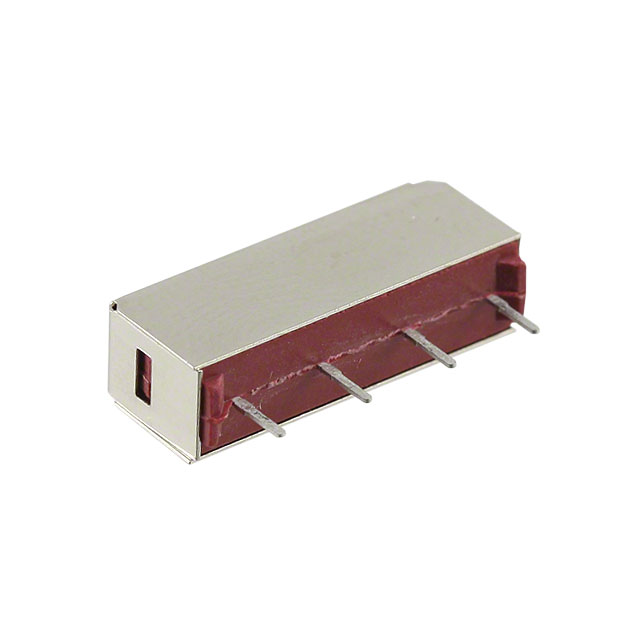

COTO TECHNOLOGY 9001-12-10	1 kOhms	0.5 A	85 °C	-20 ░C	200 VDC 200 VAC	12 mA	Non Latching	Through Hole	9 VDC	EMI Shielded	0.1 ms	12 VDC	SPST-NO (1 Form A)	1 VDC	PC Pin	0.35 ms
COTO TECHNOLOGY 9001-05-11	500 Ohms	0.5 A	85 °C	-20 ░C	200 VDC 200 VAC	10 mA	Non Latching	Through Hole	3.75 VDC	Diode EMI Shielded	0.1 ms	5 VDC	SPST-NO (1 Form A)	0.4 VDC	PC Pin	0.35 ms
