REC7.5-S_DRW Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD 7.5W DC/DC 1KV REG 2:1 18-36VIN 3.3OUT

...

Part	Applications	Type	Mounting Type	Power (Watts)	Features	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Input (Max) [Max]	Control Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 1	Package / Case	Number of Outputs	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Recom Power REC7.5-243.3SRW/H1/A/M/SMD/CTRL	ITE (Commercial) Medical	Isolated Module	Surface Mount	8 W	Remote On/Off SCP	18 V	1000 V	36 V	Active Low Enable	0.78 in	0.44 in	1.26 in	11.2 mm	32 mm	19.9 mm	71 °C	-40 C	78 %	3.3 V	24-SMD Module 18 Leads	1	1.8 A
Recom Power REC7.5-2412DRW/H1/A/M/CTRL	ITE (Commercial) Medical	Isolated Module	Through Hole	8 W	Remote On/Off SCP	18 V	1000 V	36 V	Active Low Enable	0.8 "	0.41 in	1.26 in	10.5 mm	32 mm	20.3 mm	71 °C	-40 C	85 %	12 V	24-DIP Module 8 Leads	2		-12 V	312 mA	312 mA

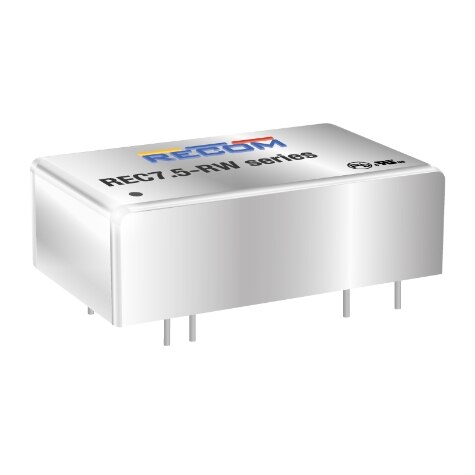

Recom Power REC7.5-1212DRW/H1/A/M/SMD/CTRL	ITE (Commercial) Medical	Isolated Module	Surface Mount	8 W	Remote On/Off SCP	9 V	1000 V	18 V	Active Low Enable	0.78 in	0.44 in	1.26 in	11.2 mm	32 mm	19.9 mm	71 °C	-40 C	85 %	12 V	24-SMD Module 18 Leads	2		-12 V	312 mA	312 mA
Recom Power REC7.5-1215SRW/H2/A/M	ITE (Commercial) Medical	Isolated Module	Through Hole	8 W	SCP	9 V	2000 V	18 V		0.8 "	0.41 in	1.26 in	10.5 mm	32 mm	20.3 mm	71 °C	-40 C	86 %	15 V	24-DIP Module 8 Leads	1	500 mA
Recom Power REC7.5-2415DRW/H2/A/M/SMD	ITE (Commercial) Medical	Isolated Module	Surface Mount	8 W	SCP	18 V	2000 V	36 V		0.78 in	0.44 in	1.26 in	11.2 mm	32 mm	19.9 mm	71 °C	-40 C	86 %	15 V	24-SMD Module 18 Leads	2		-15 V	250 mA
Recom Power REC7.5-1215DRW/H1/A/M/SMD-R	ITE (Commercial) Medical	Isolated Module	Surface Mount	8 W	SCP	9 V	1000 V	18 V		0.78 in	0.44 in	1.26 in	11.2 mm	32 mm	19.9 mm	71 °C	-40 C	86 %	15 V	24-SMD Module 18 Leads	2		-15 V	250 mA
Recom Power REC7.5-1205SRW/H1/A/M/SMD-R	ITE (Commercial) Medical	Isolated Module	Surface Mount	8 W	SCP	9 V	1000 V	18 V		0.78 in	0.44 in	1.26 in	11.2 mm	32 mm	19.9 mm	71 °C	-40 C		5 V	24-SMD Module 18 Leads	1	1.5 A
Recom Power REC7.5-1212DRW/H1/A/M	ITE (Commercial) Medical	Isolated Module	Through Hole	8 W	SCP	9 V	1000 V	18 V		0.8 "	0.41 in	1.26 in	10.5 mm	32 mm	20.3 mm	71 °C	-40 C	85 %	12 V	24-DIP Module 8 Leads	2		-12 V	312 mA	312 mA
Recom Power REC7.5-4809SRW/H1/A/M/CTRL	ITE (Commercial) Medical	Isolated Module	Through Hole	8 W	Remote On/Off SCP	36 V	1000 V	72 V	Active Low Enable	0.8 "	0.41 in	1.26 in	10.5 mm	32 mm	20.3 mm	71 °C	-40 C	84 %	9 V	24-DIP Module 8 Leads	1	833 mA
Recom Power REC7.5-2405SRW/H3/A/M	ITE (Commercial) Medical	Isolated Module	Through Hole	8 W	SCP	18 V	3000 V	36 V		0.8 "	0.41 in	1.26 in	10.5 mm	32 mm	20.3 mm	71 °C	-40 C		5 V	24-DIP Module 8 Leads	1	1.5 A
