103309 Series

Catalog

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE STRAIGHT

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Fastening Type	Features	Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Rows [custom]	Contact Type	Termination	Material Flammability Rating	Insulation Color	Insulation Height	Insulation Height	Current Rating (Amps)	Mounting Type	Contact Finish - Mating	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Number of Positions	Shrouding	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

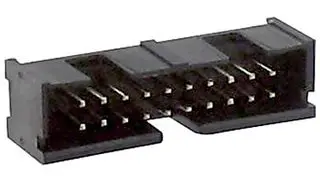

TE Connectivity AMP Connectors 103309-5	2.54 µm	100 µin	Square	Push-Pull	Keying Slot	Board to Cable/Wire	105 ░C	-65 ░C	0.24 in	6.1 mm	2	Male Pin	Solder	UL94 V-0	Black	0.388 in	9.86 mm	1 A	Through Hole	Gold or Gold-Palladium	Brass	0.1 in	2.54 mm	Header	3.05 mm	0.12 in	All	20	Shrouded - 4 Wall	Tin-Lead	0.1 "	2.54 mm	0.76 Ám	30 Áin
