FCSL Series
Manufacturer: Ohmite
Beta
⌘K
CURRENT SENSE RESISTORS - SMD 4WATT .001OHM 5% METAL FOIL
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Package / Case | Features | Power (Watts) | Resistance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Number of Terminations [custom] | Temperature Coefficient | Tolerance | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | 0.7 mm | 0.028 " | 155 C | -55 C | 9045 | 1835 Wide 3518 (9045 Metric) | Current Sense Moisture Resistant | 4 W | 1 mOhms | 8.9 mm | 4.5 mm | 0.177 in | 0.35 in | 2 | 150 ppm/°C | 5 % | |||

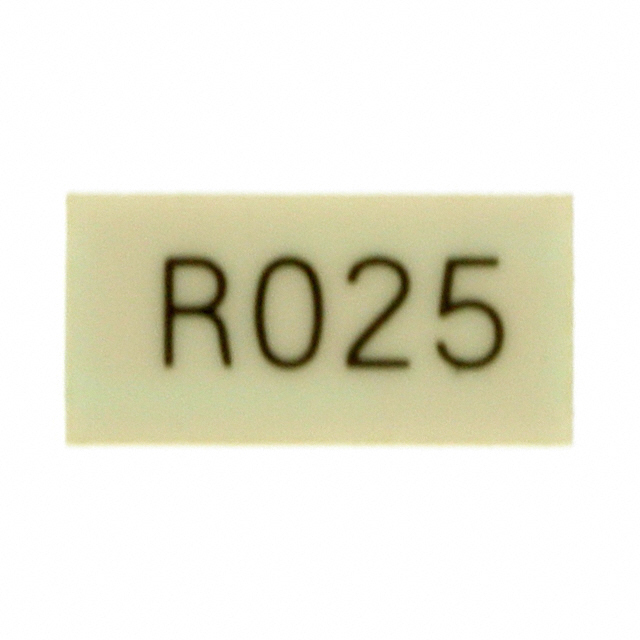

 Ohmite | 0.7 mm | 0.028 " | 155 C | -55 C | 9045 | 1835 Wide 3518 (9045 Metric) | Current Sense Moisture Resistant | 4 W | 25 mOhms | 8.9 mm | 4.5 mm | 0.177 in | 0.35 in | 2 | 50 ppm/░C | 1 % | |||
 Ohmite | 0.7 mm | 0.028 " | 155 C | -55 C | 6432 | 1225 Wide 2512 (6432 Metric) | Current Sense Moisture Resistant | 2 W | 0.03 Ohms | 6.3 mm | 3.1 mm | 0.122 " | 0.248 in | 2 | 50 ppm/░C | 1 % | |||
 Ohmite | 0.7 mm | 0.028 " | 155 C | -55 C | 1530 Wide 3015 (7638 Metric) | Current Sense Moisture Resistant | 3 W | 5 mOhms | 7.6 mm | 3.8 mm | 0.15 " | 0.299 " | 2 | 50 ppm/░C | 0.5 % | 1530 | |||

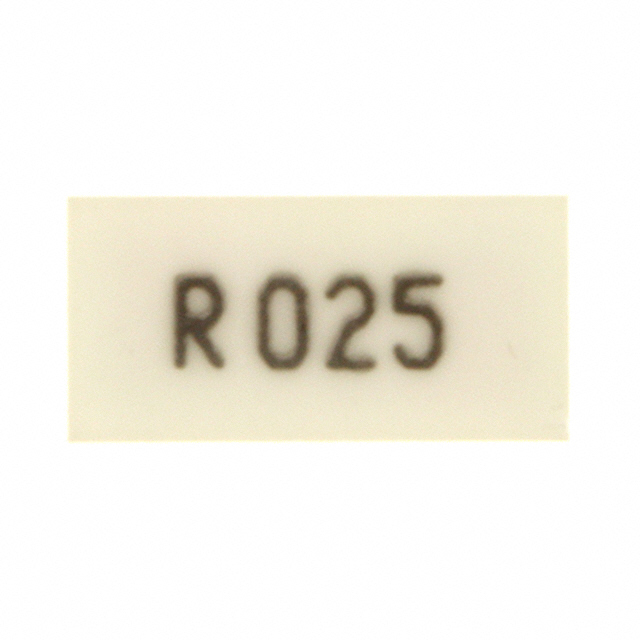

 Ohmite | 0.7 mm | 0.028 " | 155 C | -55 C | 6432 | 1225 Wide 2512 (6432 Metric) | Current Sense Moisture Resistant | 2 W | 25 mOhms | 6.3 mm | 3.1 mm | 0.122 " | 0.248 in | 2 | 50 ppm/░C | 1 % | |||
 Ohmite | 0.7 mm | 0.028 " | 155 C | -55 C | 2043 Wide 4320 (11050 Metric) | Current Sense | 10 W | 0.02 Ohms | 11 mm | 5 mm | 0.197 in | 0.433 in | 2 | 50 ppm/░C | 1 % | 2043 | |||
Ohmite | 155 C | -55 C | 3216 | 0612 Wide 1206 (3216 Metric) | Current Sense Moisture Resistant | 1.5 W | 5 mOhms | 3.2 mm | 1.6 mm | 0.063 " | 0.126 in | 2 | 100 ppm/°C | 1 % | 0.031 in | 0.8 mm | |||
Ohmite | 0.7 mm | 0.028 " | 155 C | -55 C | 1225 Wide 2512 (6432 Metric) | Current Sense Moisture Resistant | 2 W | 0.03 Ohms | 6.3 mm | 3.1 mm | 0.122 " | 0.248 in | 2 | 50 ppm/░C | 0.5 % | 1225 | |||
Ohmite | 0.7 mm | 0.028 " | 155 C | -55 C | 2043 Wide 4320 (11050 Metric) | Current Sense | 5 W | 0.02 Ohms | 11 mm | 5 mm | 0.197 in | 0.433 in | 2 | 50 ppm/░C | 1 % | 2043 | |||
Ohmite | 0.7 mm | 0.028 " | 155 C | -55 C | 11050 | 2043 Wide 4320 (11050 Metric) | Current Sense Moisture Resistant | 5 W | 25 mOhms | 11 mm | 5 mm | 0.197 in | 0.433 in | 2 | 50 ppm/░C | 0.5 % |
