MEAS HTU Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BOARD MOUNT HUMIDITY SENSORS HTU31D I.C 31D RH/T DIGITAL R1500 4KV

Part	Response Time	Mounting Type	Package / Case	Humidity Range [Min]	Humidity Range [Max]	Sensor Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Accuracy	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Voltage - Supply
TE Connectivity AMP Connectors 10142048-21
TE Connectivity AMP Connectors 10142048-30	5 s	Surface Mount	6-VDFN Exposed Pad	0 % RH	100 % RH	Humidity Temperature	6-DFN (2.5x2.5)	125 °C	-40 C	Analog Voltage	2 % RH	5.5 V	3 V
TE Connectivity AMP Connectors 10142048-31	5 s	Surface Mount	6-VDFN Exposed Pad	0 % RH	100 % RH	Humidity Temperature	6-DFN (2.5x2.5)	125 °C	-40 C	Analog Voltage	2 % RH	5.5 V	3 V
TE Connectivity AMP Connectors HPP845E035R4	10 s	Surface Mount	6-VDFN Exposed Pad	0 % RH	100 % RH	Humidity Temperature	6-DFN (3x3)	125 °C	-40 C	PWM	3 % RH	3.6 V	1.5 V	12 b
TE Connectivity AMP Connectors HPP845E032R4	10 s	Surface Mount	6-VDFN Exposed Pad	0 % RH	100 % RH	Humidity Temperature	6-DFN (3x3)	125 °C	-40 C	PWM	2 % RH	3.6 V	1.5 V	12 b

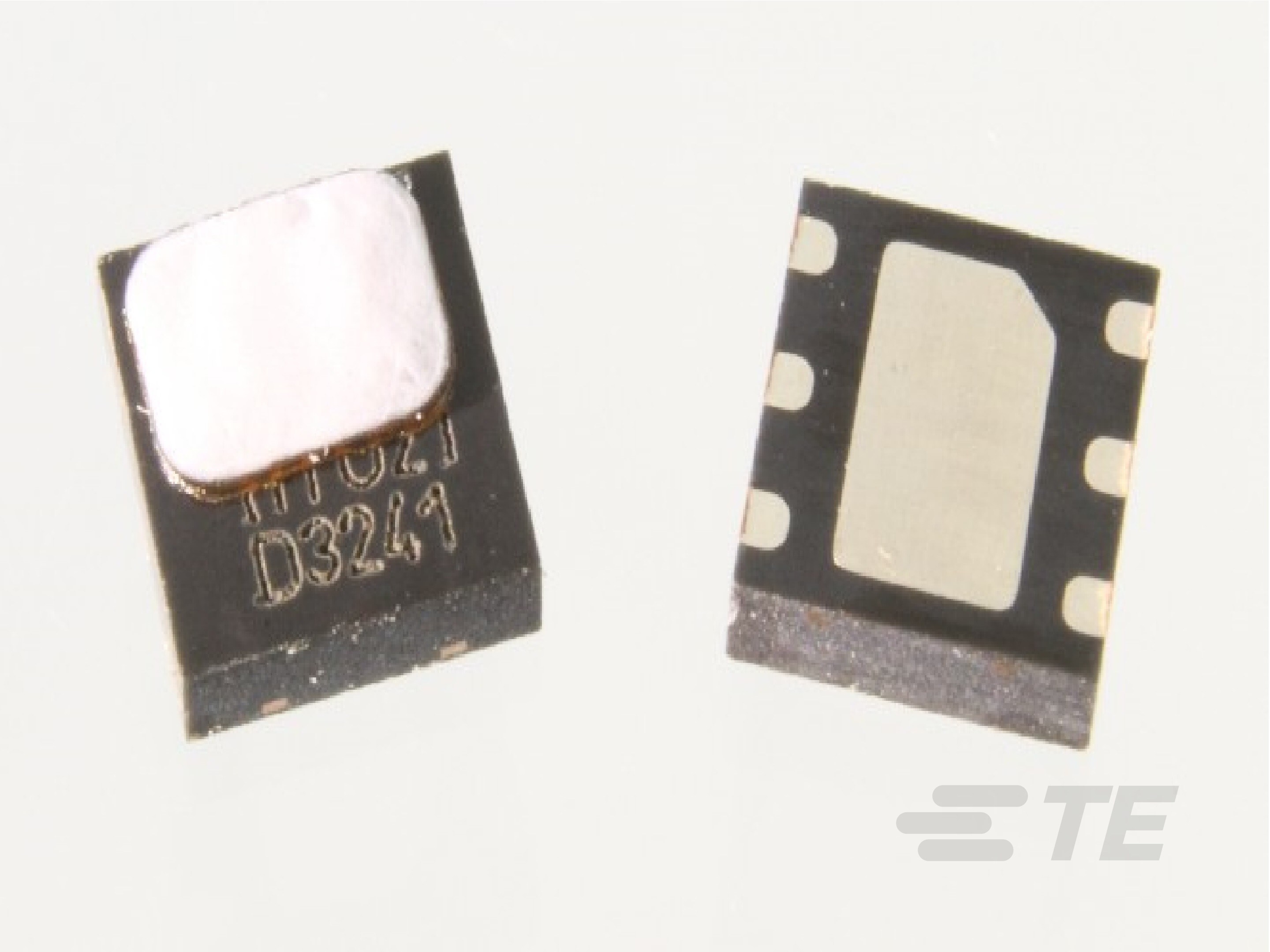

TE Connectivity AMP Connectors HPP845E131R1	5 s	Surface Mount	6-VDFN Exposed Pad	0 % RH	100 % RH	Humidity Temperature	6-DFN (3x3)	125 °C	-40 C	I2C	3 % RH	3.6 V	1.5 V	12 b

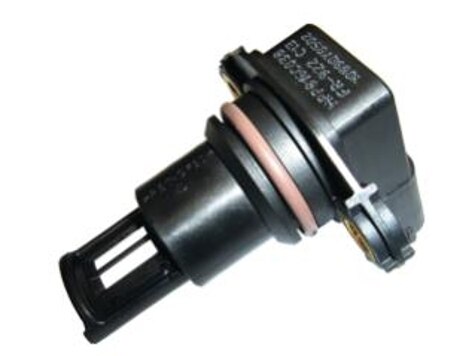

TE Connectivity AMP Connectors 10142032-03	5 s	Panel Mount	Module	0 % RH	100 % RH	Humidity Temperature		105 ░C	-40 C	Digital	3 % RH				5.5 V
TE Connectivity AMP Connectors 10142032-02	5 s	Panel Mount	Module	0 % RH	100 % RH	Humidity Temperature		105 ░C	-40 C	Digital	3 % RH				5.5 V
TE Connectivity AMP Connectors HPP845E031R4	5 s	Surface Mount	6-VDFN Exposed Pad	0 % RH	100 % RH	Humidity Temperature	6-DFN (3x3)	125 °C	-40 C	I2C	2 % RH	3.6 V	1.5 V	12 b
TE Connectivity AMP Connectors HPP845E131R5	5 s	Surface Mount	6-VDFN Exposed Pad	0 % RH	100 % RH	Humidity Temperature	6-DFN (3x3)	125 °C	-40 C	I2C	3 % RH	3.6 V	1.5 V	12 b
