25072 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

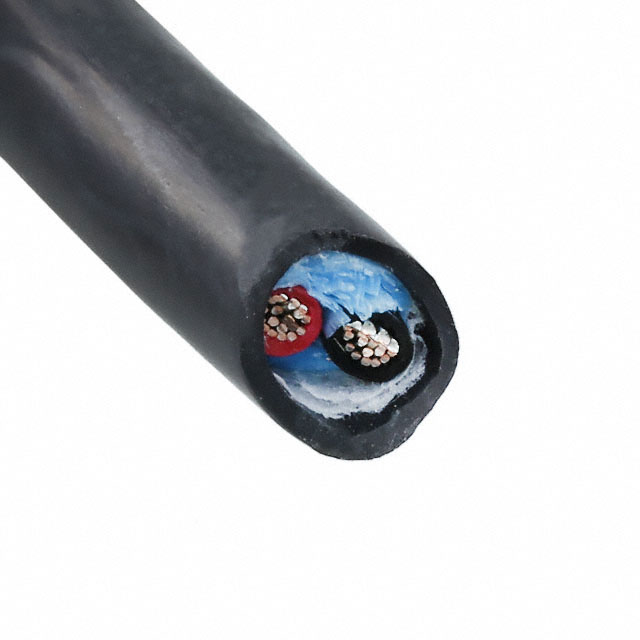

CABLE 2COND 16AWG BLACK 100'
| Part | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Number of Conductors | Conductor Material | Conductor Strand [custom] | Conductor Strand [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Features | Jacket (Insulation) Material | Ratings | Wire Gauge | Cable Type | Length [x] | Length [x] | Spool Size [x] | Spool Size [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 300 VDC | 0.813 mm | 0.032 in | 0.25 " | 6.35 mm | Black | 2 | Copper Tinned | 19 | 0.0117 in | -30 ░C | 90 °C | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Polyurethane (PU) | ISO 10993 UL Style 20668 | 16 AWG | Multi-Conductor | 100 ft | 30.5 m | |||
ALPHA WIRE | 300 VDC | 0.813 mm | 0.032 in | 0.25 " | 6.35 mm | Black | 2 | Copper Tinned | 19 | 0.0117 in | -30 ░C | 90 °C | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Polyurethane (PU) | ISO 10993 UL Style 20668 | 16 AWG | Multi-Conductor | 304.8 m | 1000 ft | Enter Number of Feet in Order Quantity |
