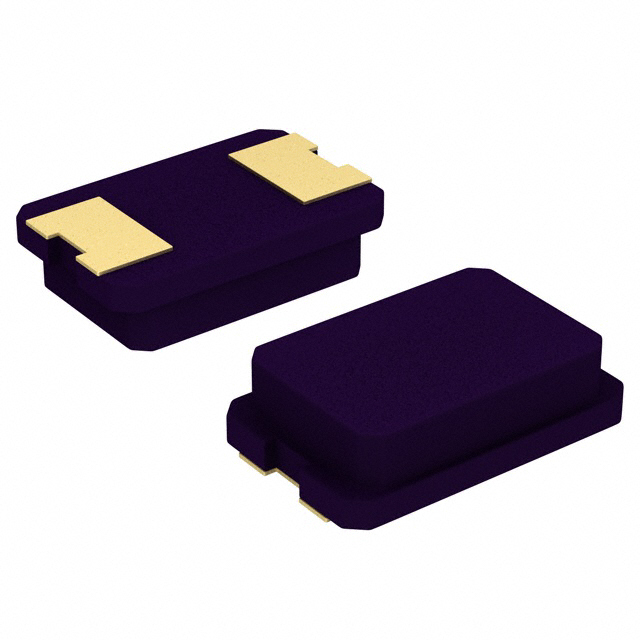

ABM3 Series

Catalog

CRYSTALS 25.0 MHZ 18PF 50OHM

Part	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Load Capacitance	Package / Case	Type	Mounting Type	Frequency Tolerance	Frequency	Operating Mode	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Stability	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package
Abracon LLC ABM3-25.000MHZ-D2Y-T	30 Ohm	0.051 in	1.3 mm	18 pF	2-SMD No Lead	MHz Crystal	Surface Mount	20 ppm	25 MHz	Fundamental	85 °C	-40 C	30 ppm	3.2 mm	0.126 in	5 mm	0.197 in
Abracon LLC ABM3-16.000MHZ-B4Y-T	40 Ohms	0.051 in	1.3 mm	18 pF	2-SMD No Lead	MHz Crystal	Surface Mount	30 ppm	16 MHz	Fundamental	70 °C	-20 ░C	30 ppm	3.2 mm	0.126 in	5 mm	0.197 in	5	3.2	2-SMD
Abracon LLC ABM3-27.000MHZ-D2Y-T	30 Ohm	0.051 in	1.3 mm	18 pF	2-SMD No Lead	MHz Crystal	Surface Mount	20 ppm	27 MHz	Fundamental	85 °C	-40 C	30 ppm	3.2 mm	0.126 in	5 mm	0.197 in	5	3.2	2-SMD
Abracon LLC ABM3-24.576MHZ-B2-T	30 Ohm	0.051 in	1.3 mm	18 pF	2-SMD No Lead	MHz Crystal	Surface Mount	20 ppm	24.576 MHz	Fundamental	70 °C	-20 ░C	50 ppm	3.2 mm	0.126 in	5 mm	0.197 in
Abracon LLC ABM3-12.288MHZ-D2Y-T	60 Ohms	0.051 in	1.3 mm	18 pF	2-SMD No Lead	MHz Crystal	Surface Mount	20 ppm	12.288 MHz	Fundamental	85 °C	-40 C	30 ppm	3.2 mm	0.126 in	5 mm	0.197 in
