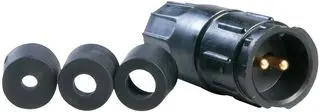

5182-2PG Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
MULTI-CON CABLE-CABLE #12 SOLDER
| Part | Number of Positions | Ingress Protection | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Backshell Material, Plating | Orientation | Voltage Rating | Contact Finish - Mating | Features | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Color | Connector Type | Primary Material | Shielding | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 2 | Weathertight | Brass | 115 °C | -40 C | Free Hanging (In-Line) | Nylon Polyamide (PA) | Keyed | 600 V | Gold | Backshell | 0.32 in | 0.3 in | 7.62 mm | 8.13 mm | Black | Receptacle Male Pins | Plastic | Unshielded | Bayonet Lock |
 SWITCHCRAFT/CONXALL | 2 | Weathertight | Brass | 115 °C | -40 C | Free Hanging (In-Line) | Nylon Polyamide (PA) | Keyed | 600 V | Gold | Backshell | Black | Receptacle Male Pins | Plastic | Unshielded | Bayonet Lock | ||||
 SWITCHCRAFT/CONXALL | 2 | Weathertight | Brass | 115 °C | -40 C | Free Hanging (In-Line) | Nylon Polyamide (PA) | Keyed | 600 V | Gold | Backshell Cable Clamp | 0.32 in | 0.3 in | 7.62 mm | 8.13 mm | Black | Receptacle Male Pins | Plastic | Unshielded | Bayonet Lock |
 SWITCHCRAFT/CONXALL | 2 | Weathertight | Brass | 115 °C | -40 C | Free Hanging (In-Line) | Nylon Polyamide (PA) | Keyed | 600 V | Gold | Backshell | 0.23 in | 0.21 in | 5.33 mm | 5.84 mm | Black | Receptacle Male Pins | Plastic | Unshielded | Bayonet Lock |
