NRPN044 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

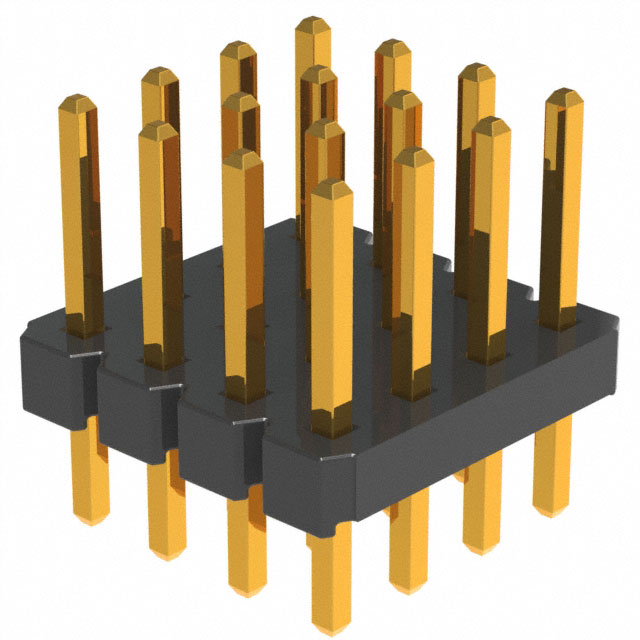

CONN HEADER VERT 16POS 2MM
| Part | Contact Finish Thickness - Post | Material Flammability Rating | Mounting Type | Contact Length - Mating | Contact Length - Mating | Shrouding | Overall Contact Length | Overall Contact Length | Contact Material | Fastening Type | Contact Finish - Post | Contact Finish Thickness - Mating | Termination | Number of Positions Loaded | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Pitch - Mating | Pitch - Mating | Contact Type | Number of Positions | Connector Type | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Insulation Height | Insulation Height | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | UL94 V-0 | Through Hole | 0.173 in | 4.4 mm | Unshrouded | 8.3 mm | 0.327 in | Brass | Push-Pull | Gold | Flash | Solder | All | Square | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | 0.079 " | 2 mm | Male Pin | 16 | Header | 2.4 mm | 0.094 in | 2 A | 0.059 in | 1.5 mm | 2 mm | 0.079 in | Black | Gold |
