RUMC31 Series

Catalog

HARMONY, UNIVERSAL PLUG-IN RELAY

Part	Contact Material	Termination Style	Approval Agency	Load - Max Switching	Coil Current	Mounting Type	Operate Time	Coil Voltage	Contact Rating (Current)	Relay Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Release Time	Must Operate Voltage	Coil Type	Switching Voltage [Max]	Contact Form	Coil Resistance
SCHNEIDER ELECTRIC RUMC31ED	Silver Nickel (AgNi)	Plug In	CSA EAC UL	280 W 2500 VA	26.7 mA	Socketable	20 ms	48 VDC	10 A	General Purpose	Test Button	55 °C	-40 C	4.8 VDC	20 ms	38.4 VDC	Non Latching	28 VDC 250 VAC	3PDT (3 Form C)
SCHNEIDER ELECTRIC RUMC31F7	Silver Nickel (AgNi)	Plug In	CSA EAC UL	280 W 2500 VA	70.6 mA	Socketable	20 ms	120 VAC	10 A	General Purpose	Lighted Indicator	55 °C	-40 C	18 VAC	20 ms	96 VAC	Non Latching	28 VDC 250 VAC	3PDT (3 Form C)	1.7 kOhms
SCHNEIDER ELECTRIC RUMC31P7	Silver Nickel (AgNi)	Plug In	CSA EAC UL	280 W 2500 VA	33.8 mA	Socketable	20 ms	230 VAC	10 A	General Purpose	Test Button	55 °C	-40 C	34.5 VAC	20 ms	184 VAC	Non Latching	28 VDC 250 VAC	3PDT (3 Form C)	6.8 kOhms
SCHNEIDER ELECTRIC RUMC31FD	Silver Nickel (AgNi)	Plug In	CSA EAC UL	280 W 2500 VA	15.1 mA	Socketable	20 ms	110 VDC	10 A	General Purpose	Test Button	55 °C	-40 C	11 VDC	20 ms	88 VDC	Non Latching	28 VDC 250 VAC	3PDT (3 Form C)	7.3 kOhms
SCHNEIDER ELECTRIC RUMC31MD	Silver Nickel (AgNi)	Plug In	CSA EAC UL	280 W 2500 VA	5.9 mA	Socketable	20 ms	220 VDC	10 A	General Purpose	Test Button	55 °C	-40 C	22 VDC	20 ms	176 VDC	Non Latching	28 VDC 250 VAC	3PDT (3 Form C)	37 kOhms
SCHNEIDER ELECTRIC RUMC31E7	Silver Nickel (AgNi)	Plug In	CSA EAC UL	280 W 2500 VA	165.5 mA	Socketable	20 ms	48 VAC	10 A	General Purpose	Test Button	55 °C	-40 C	7.2 VAC	20 ms	38.4 VAC	Non Latching	28 VDC 250 VAC	3PDT (3 Form C)
SCHNEIDER ELECTRIC RUMC31BD	Silver Nickel (AgNi)	Plug In	CSA EAC UL	280 W 2500 VA	51.1 mA	Chassis Mount	20 ms	24 VDC	10 A	General Purpose	Test Button	55 °C	-40 C	2.4 VDC	20 ms	19.2 VDC	Non Latching	28 VDC 250 VAC	3PDT (3 Form C)	470 Ohms
SCHNEIDER ELECTRIC RUMC31JD	Silver Nickel (AgNi)	Plug In	CSA EAC UL	280 W 2500 VA	0.1 A	Socketable	20 ms	12 VDC	10 A	General Purpose	Test Button	55 °C	-40 C	1.2 VDC	20 ms	9.6 VDC	Non Latching	28 VDC 250 VAC	3PDT (3 Form C)	120 Ohms

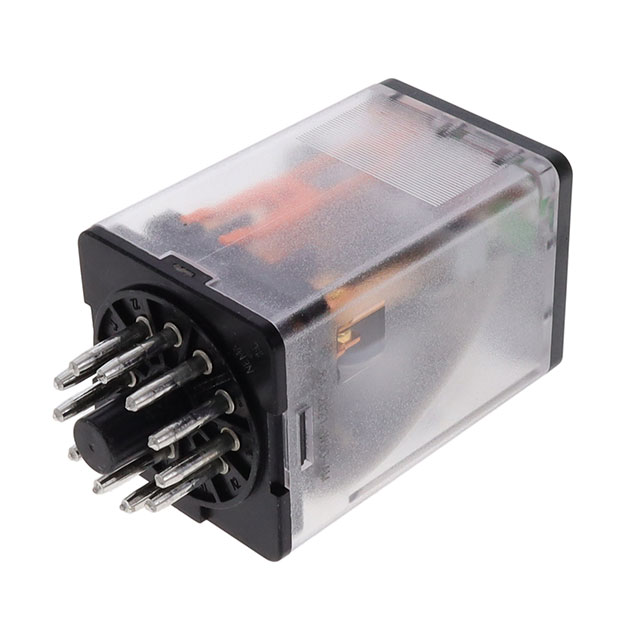

SCHNEIDER ELECTRIC RUMC31B7	Silver Nickel (AgNi)	Plug In	CSA EAC UL	280 W 2500 VA	333.3 mA	Chassis Mount	20 ms	24 VAC	10 A	General Purpose	Test Button	55 °C	-40 C	3.6 VAC	20 ms	19.2 VAC	Non Latching	28 VDC 250 VAC	3PDT (3 Form C)	72 Ohms
SCHNEIDER ELECTRIC RUMC31ND	Silver Nickel (AgNi)	Plug In	CSA EAC UL	280 W 2500 VA	21.5 mA	Socketable	20 ms	60 VDC	10 A	General Purpose	Test Button	55 °C	-40 C	6 VDC	20 ms	48 VDC	Non Latching	28 VDC 250 VAC	3PDT (3 Form C)	2.79 kOhms
