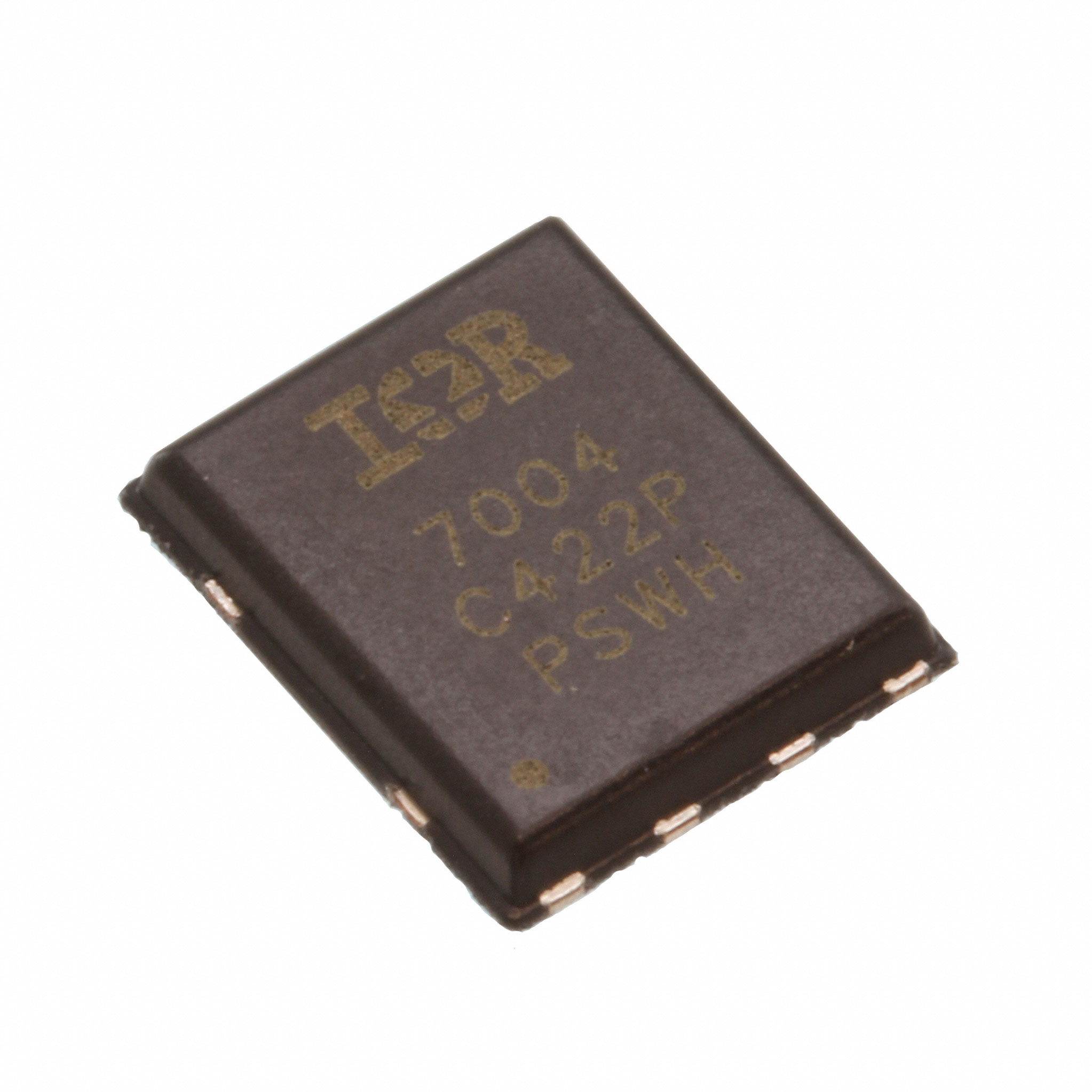

IRFH7004 Series
Manufacturer: INFINEON
Beta
⌘K
STRONGIRFET™ N-CHANNEL ; SUPERSO8 5X6 PACKAGE; 1.4 MOHM;
| Part | Supplier Device Package | Rds On (Max) @ Id, Vgs | Vgs (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Technology | Input Capacitance (Ciss) (Max) @ Vds | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Mounting Type | Power Dissipation (Max) | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Gate Charge (Qg) (Max) @ Vgs | Package / Case | Vgs(th) (Max) @ Id |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 8-PQFN (5x6) | 1.4 mOhm | 20 V | 150 °C | -55 °C | MOSFET (Metal Oxide) | 6419 pF | N-Channel | 6 V 10 V | Surface Mount | 156 W | 40 V | 100 A | 194 nC | 8-VQFN Exposed Pad | 3.9 V |
