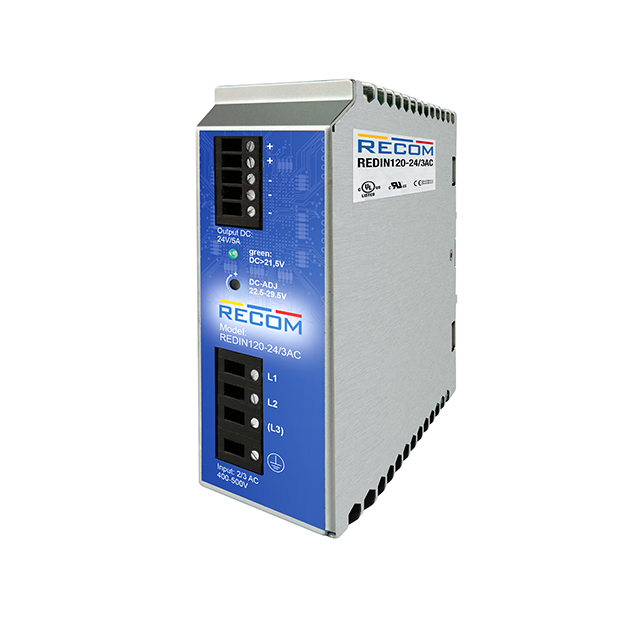

DIN Rail Power Supplies 120W 320-575Vin 24Vout 5A DIN
Beta
⌘K
DIN Rail Power Supplies 120W 320-575Vin 24Vout 5A DIN
DIN Rail Power Supplies 120W 320-575Vin 24Vout 5A DIN
| Part | Minimum Load Required | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Features | Efficiency | Power (Watts) | Number of Outputs | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Voltage - Output 1 | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Voltage - Isolation | Current - Output (Max) | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 40 mm | 130 mm | 5.12 in | 1.57 " | 4.53 " | 115 mm | Adjustable Output | 89 % | 120 W | 1 | Hazardous Locations ITE (Commercial) | 55 °C | -25 °C | CE cULus cURus | 24 V | 575 VAC 575 VAC | 320 VAC 360 VAC | 4.242 kV | 5 A | AC |
