SMS6PH Series

Catalog

CONN HEADER VERT 6POS 5.08MM

Part	Fastening Type	Insulation Height	Shrouding	Features	Row Spacing - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness - Mating	Current Rating	Insulation Material	Number of Rows	Number of Positions	Contact Shape	Number of Positions Loaded	Contact Finish - Post	Contact Material	Mounting Type	Insulation Color	Pitch - Mating	Contact Length - Post	Termination	Material Flammability Rating	Contact Finish - Mating	Contact Type	Connector Type	Style
Amphenol Aerospace Operations SMS6PH-4TR29	Push-Pull	0.901 in	Shrouded - 4 Wall	Mounting Flange	0.2 in	125 °C	-55 °C	47.2 µin	5 A	Glass Filled Thermoplastic	2	6	Circular	All	Tin	Copper Alloy	Through Hole	Black	0.2 in	0.157 in	Solder	UL94 V-0	Tin	Male Pin	Header	Board Cable/Wire

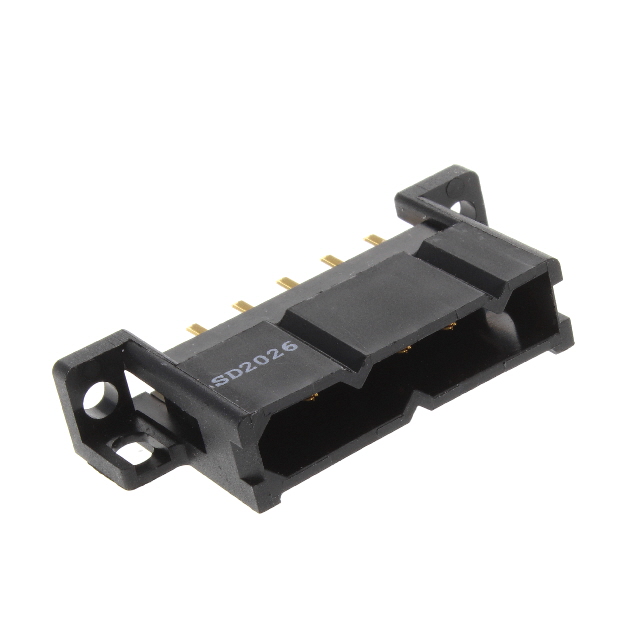

Amphenol Aerospace Operations SMS6PH4D28	Push-Pull	0.901 in	Shrouded - 4 Wall	Mounting Flange		125 °C	-55 °C	29.5 Ąin	5 A	Glass Filled Thermoplastic	1	6	Circular	All		Copper Alloy	Through Hole	Black	0.2 in	0.157 in	Solder	UL94 V-0	Gold	Male Pin	Header	Board Cable/Wire

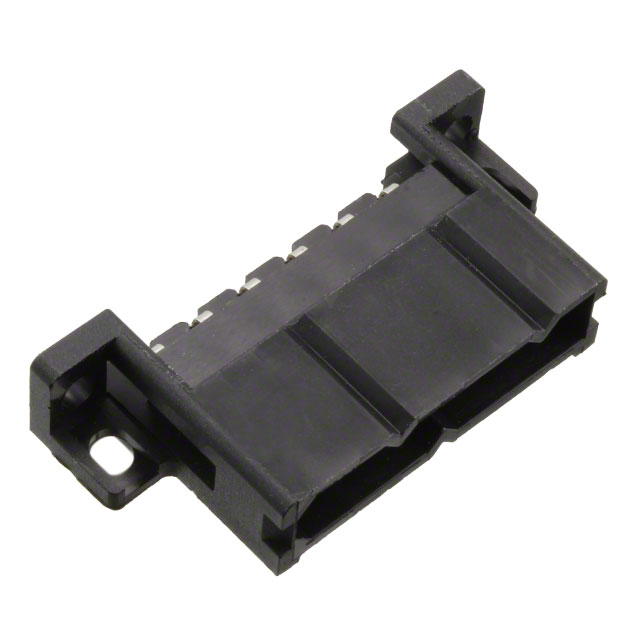

Amphenol Aerospace Operations SMS6PH3TR29	Push-Pull	0.37 in	Shrouded - 4 Wall	Mounting Flange		125 °C	-55 °C	47.2 µin	5 A	Glass Filled Thermoplastic	1	6	Circular	All	Tin	Copper Alloy	Right Angle Through Hole	Black	0.2 in	0.165 in	Solder	UL94 V-0	Tin	Male Pin	Header	Board Cable/Wire
