GPS-17 Series

Manufacturer: SparkFun

Catalog

GNSS MULTI-BAND L1/L2 SURVEYING

Part	Frequency Range [Max]	Frequency Range [Min]	Gain	Number of Bands	Frequency (Center/Band)	Mounting Type	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Applications	Ingress Protection	Termination	Height (Max) [z]	Height (Max) [z]	Antenna Type	VSWR	RF Family/Standard	Features	Height (Max) [z]	Height (Max) [Max] [z]
SparkFun 17751	1.278 GHz 1.615 GHz	1.198 GHz 1.555 GHz	5 dBi	2	1.238 GHz 1.585 GHz	Panel Mount Screw Mount	2 GHz	1 GHz	UHF	BeiDou Galileo GLONASS GNSS GPS	IP67	TNC	55.5 mm	2.185 in	Dome	1.5 2	Navigation	LNA
SparkFun GPS-17108			-1 dBi 0.6 dBi 2.1 dBi 2.4 dBi 2.9 dBi	5	1.176 GHz 1.227 GHz 1.561 GHz 1.575 GHz 1.602 GHz	Magnetic	2 GHz	1 GHz	UHF	BeiDou Galileo GLONASS GNSS GPS QZSS	IP67			26.5 mm	Module	2	Navigation	Cable - 1.5m Filter LNA	1.043 in
SparkFun GPS-17383			3 dBi			Connector Mount				BeiDou Galileo GLONASS GNSS GPS	IP67	SMA		58.6 mm	Helical	1.5	Navigation	LNA		2.307 in

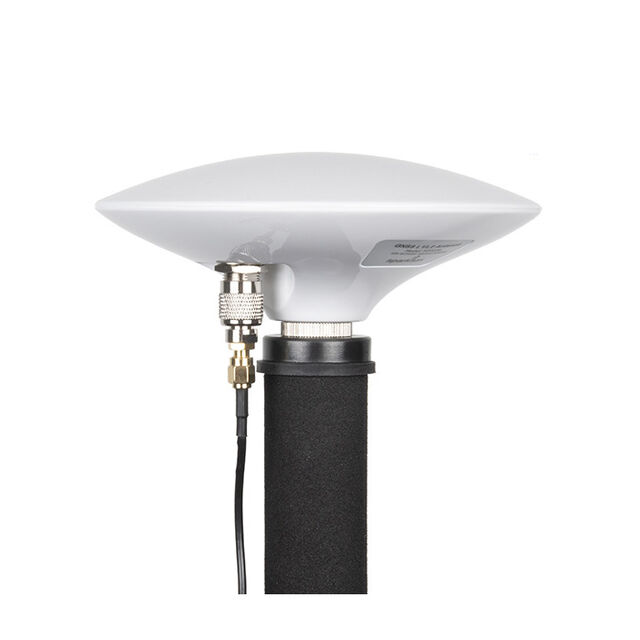

SparkFun GPS-17751	1.278 GHz 1.615 GHz	1.198 GHz 1.555 GHz	5 dBi	2	1.238 GHz 1.585 GHz	Screw Mount	2 GHz	1 GHz	UHF	BeiDou Galileo GLONASS GNSS GPS	IP67		55.5 mm	2.185 in	Dome	2	Navigation	LNA
