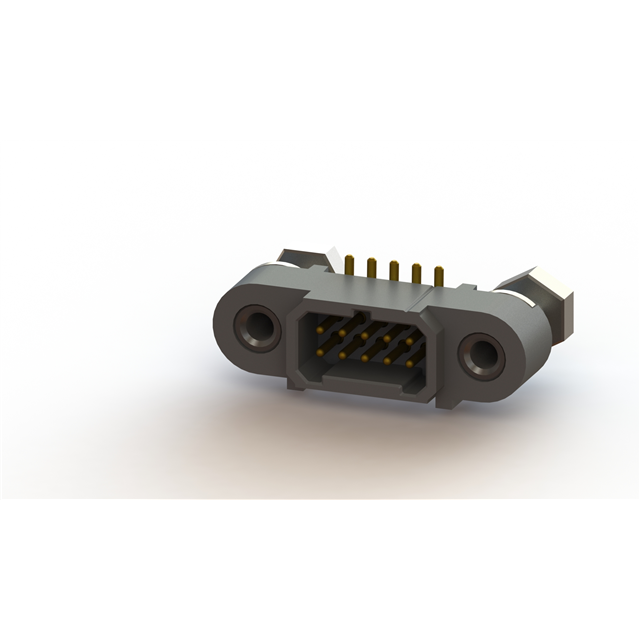

A221T10V Series
Manufacturer: Nicomatic
Beta
⌘K
MALE 10POS STRAIGHT SMT 1.27MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Voltage Rating | Style | Contact Type | Number of Positions Loaded | Connector Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Termination | Insulation Color | Insulation Material | Mounting Type | Material Flammability Rating | Features | Number of Positions | Current Rating (Amps) | Number of Rows [custom] | Contact Finish - Post | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nicomatic | 0.15 µm | 5.9 µin | Circular | Shrouded - 4 Wall | 0.039 in | 1 mm | 600 VAC | Board to Board Cable | Male Pin | All | Header | 1 mm | 0.039 in | 5.9 µin | 0.15 µm | 4 mm | 0.157 in | -65 ░C | 200 °C | Gold | Solder | Black | Liquid Crystal Polymer (LCP) | Surface Mount | UL94 V-0 | Mating Flange Mounting Flange Mounting Hardware | 10 | 2.5 A | 2 | Gold | Copper Alloy |
