T 3403 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K
CONN RCPT HSNG FMALE 6POS PNL MT
| Part | Shielding | Orientation | Mounting Feature | Mounting Type | Contact Type | Material Flammability Rating | Ingress Protection | Note | Shell Material | Shell Finish | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Insert Material | Connector Type | Contact Shape | Type | Housing Color | Contact Size | Fastening Type | Termination | Current Rating (Amps) | Contact Finish - Mating | Color | Voltage Rating | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Shielded | Keyed | Bulkhead - Rear Side Nut | Panel Mount | Crimp | UL94 V-0 | IP40 | Contacts Not Included | Die Cast | Nickel | 6 | -40 C | 100 °C | M16-6 | Thermoplastic | Receptacle Housing | Circular | For Female Sockets | Silver | 1.5 mm | Threaded | ||||||

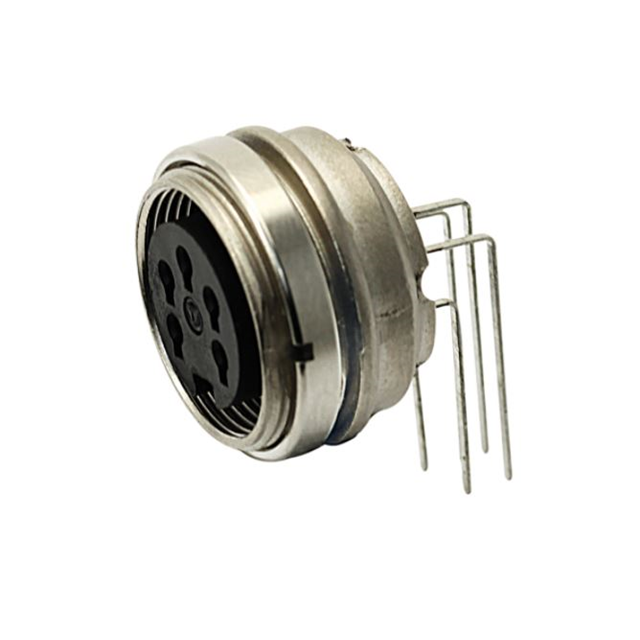

 Amphenol Tuchel Industrial | Shielded | Keyed | Panel Mount Right Angle Through Hole | IP40 | Die Cast | Nickel | 6 | -40 C | 100 °C | M16-6 | Receptacle Female Sockets | Threaded | Solder | 7 A | Gold | Silver | 250 V | Metal | |||||||||
 Amphenol Tuchel Industrial | Shielded | Keyed | Panel Mount | IP40 | Die Cast | Nickel | 6 | -40 C | 100 °C | M16-6 | Receptacle Female Sockets | Threaded | 7 A | Gold | Silver | 250 V | Metal | ||||||||||
 Amphenol Tuchel Industrial | Shielded | Keyed | Panel Mount | IP40 | Die Cast | Nickel | 6 | -40 C | 100 °C | M16-6 | Receptacle Female Sockets | Threaded | 7 A | Gold | Silver | 250 V | Metal | ||||||||||
 Amphenol Tuchel Industrial | Shielded | Keyed | Panel Mount Through Hole | IP40 | Die Cast | Nickel | 6 | -40 C | 100 °C | M16-6 | Receptacle Female Sockets | Threaded | Solder | 7 A | Silver | Silver | 250 V | Metal | |||||||||
Amphenol Tuchel Industrial | Shielded | Keyed | Panel Mount Through Hole | IP40 | Die Cast | Nickel | 6 | -40 C | 100 °C | M16-6 | Receptacle Female Sockets | Threaded | Solder | 7 A | Silver | Silver | 250 V | Metal | |||||||||
Amphenol Tuchel Industrial | Shielded | Keyed | Bulkhead - Front Side Nut | Panel Mount | IP40 | Die Cast | Nickel | 6 | -40 C | 100 °C | M16-6 | Receptacle Female Sockets | Threaded | 7 A | Silver | Silver | 250 V | Metal | |||||||||
 Amphenol Tuchel Industrial | Shielded | Keyed | Panel Mount Through Hole | IP40 | Die Cast | Nickel | 6 | -40 C | 100 °C | M16-6 | Receptacle Female Sockets | Threaded | Solder | 7 A | Silver | Silver | 250 V | Metal | |||||||||
 Amphenol Tuchel Industrial | Shielded | Keyed | Bulkhead - Front Side Nut | Panel Mount | Crimp | UL94 V-0 | IP40 | Contacts Not Included | Die Cast | Nickel | 6 | -40 C | 100 °C | M16-6 | Thermoplastic | Receptacle Housing | Circular | For Female Sockets | Silver | 1.5 mm | Threaded |
