HL4 Series

Catalog

COPPER MECHANICAL LUG, 2 HOLE, INTERNAL ROHS COMPLIANT: YES

Part	Contact Material	Features	Termination	Length - Overall	Length - Overall	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges	Width - Outer Edges	Tab Thickness	Tab Thickness	Insulation	Terminal Type	Mounting Type	Terminal Style	Stud/Tab Size	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Length - Overall [x]	Length - Overall [x]

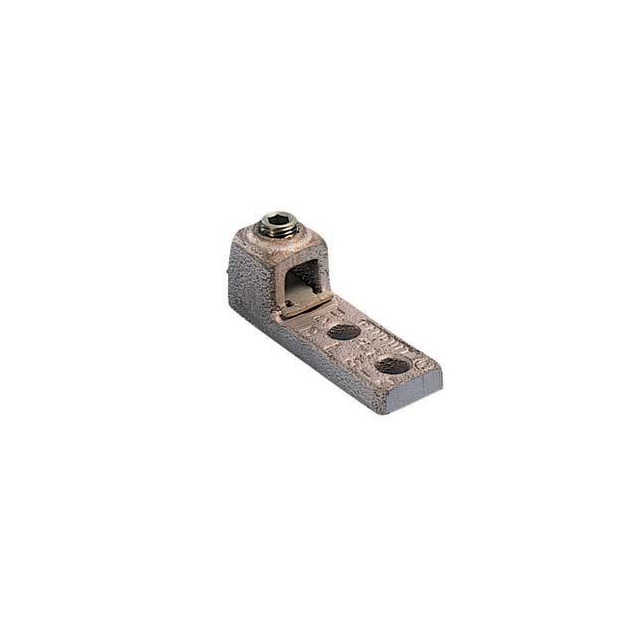

Panduit Corp HL4-2-X	Copper Alloy	With Screw	Screw	2 in	50.8 mm	8 AWG	4 AWG	0.56 in	14.22 mm	0.18 in	4.57 mm	Non-Insulated	Lug Grounding	Free Hanging (In-Line)	Two Stud Holes	0.25 Stud
Panduit Corp HL4-1-X	Copper	With Screw	Screw			8 AWG	4 AWG	0.56 in	14.22 mm	0.19 in	4.83 mm	Non-Insulated	Lug Grounding	Free Hanging (In-Line)	Single Stud Hole	0.25 Stud	7.11 mm	0.28 "	35.05 mm	1.38 in
