FYL0H Series
Manufacturer: KEMET
Beta
⌘K
SUPERCAPACITOR, 10000 ΜF, 5.5 V, PC PIN, -20%, +80%, 5.08 MM, 1000 HOURS @ 70°C
| Part | Operating Temperature [Min] | Operating Temperature [Max] | ESR (Equivalent Series Resistance) | Tolerance [Max] | Tolerance [Min] | Capacitance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Voltage - Rated | Size / Dimension [diameter] | Size / Dimension [diameter] | Termination | Mounting Type | Package / Case | Lead Spacing | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

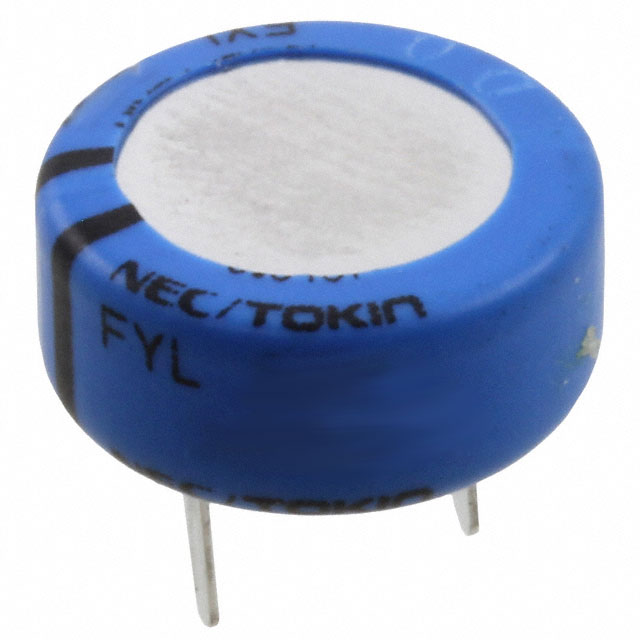

 KEMET | -25 °C | 70 °C | 300 Ohm | 80 % | -20 % | 10000 µF | 0.217 " | 5.5 mm | 5.5 V | 0.433 " | 11 mm | PC Pins | Through Hole | Can Radial | 0.2 in | 5.08 mm |

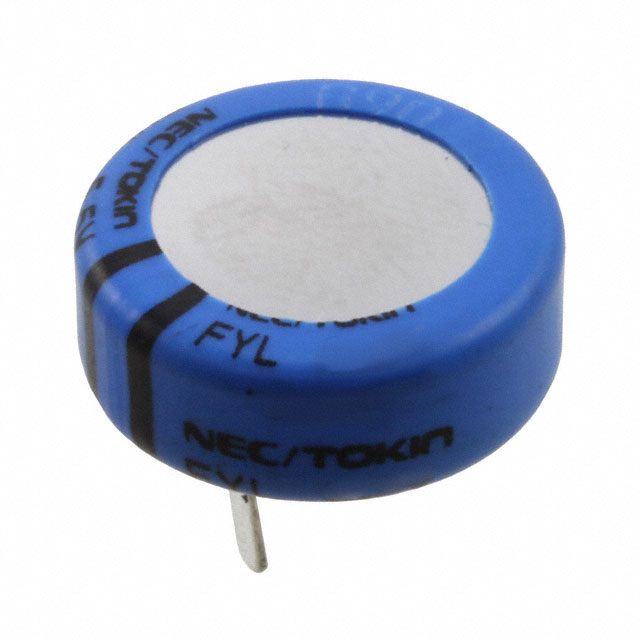

 KEMET | -25 °C | 70 °C | 200 Ohm | 80 % | -20 % | 47 mF | 0.217 " | 5.5 mm | 5.5 V | 0.472 " | 12 mm | PC Pins | Through Hole | Can Radial | 0.2 in | 5.08 mm |
