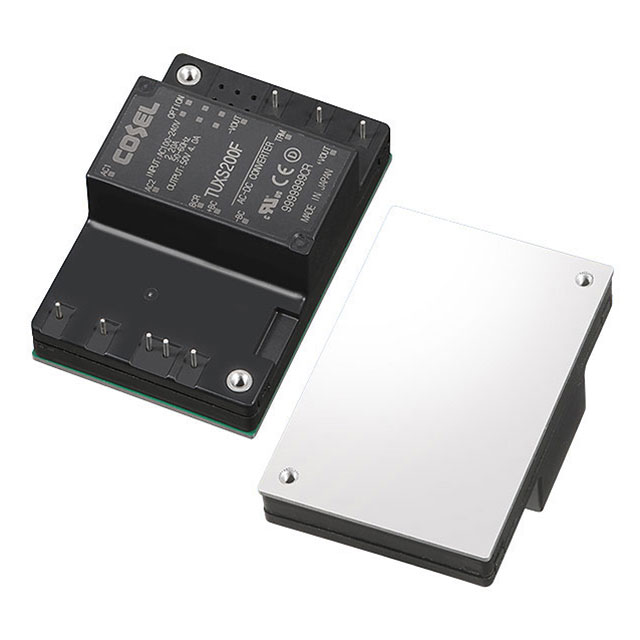

TUXS200 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
AC/DC CONVERTER 42V 200W
| Part | Line Regulation | Features | Current - Output (Max) [Max] | Number of Outputs | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Type | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Approval Agency | Applications | Mounting Type | Power (Watts) | Efficiency | Load Regulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 84 mV | Adjustable Output PFC Universal Input | 4.7 A | 1 | 42 V | -40 °C | 100 °C | Enclosed | 8-DIP Module | 76.2 mm | 2 in | 28.4 mm | 50.8 mm | 3 " | 1.12 " | CE cURus TUV | ITE (Commercial) | Through Hole | 200 Watts | 92 % | |
Cosel USA, Inc. | 64 mV | Adjustable Output PFC Universal Input | 6.2 A | 1 | 32 V | -40 °C | 100 °C | Enclosed | 8-DIP Module | 76.2 mm | 2 in | 28.4 mm | 50.8 mm | 3 " | 1.12 " | CE cURus TUV | ITE (Commercial) | Through Hole | 200 Watts | 92 % | 64 mV |
Cosel USA, Inc. | 48 mV | Adjustable Output PFC Universal Input | 8.3 A | 1 | 24 V | -40 °C | 100 °C | Enclosed | 8-DIP Module | 76.2 mm | 2 in | 28.4 mm | 50.8 mm | 3 " | 1.12 " | CE cURus TUV | ITE (Commercial) | Through Hole | 200 Watts | 91 % | 48 mV |
