A7PH Series

Catalog

SWITCH THUMB BCD 0.15A 125V

Part	Color	Electrical Life	Depth Behind Flange	Mounting Type	Actuator Type	Section Width [y]	Section Width [y]	Read Out [Max]	Read Out [Min]	Number of Sections	Contact Rating @ Voltage	End Caps	Display Characters - Height [z]	Display Characters - Height [z]	Output Code	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Output Code [z]	Output Code [y]	Output Code [x]	Output Code [y]	Output Code [x]	Output Code [z]	Display Characters - Height	Read Out

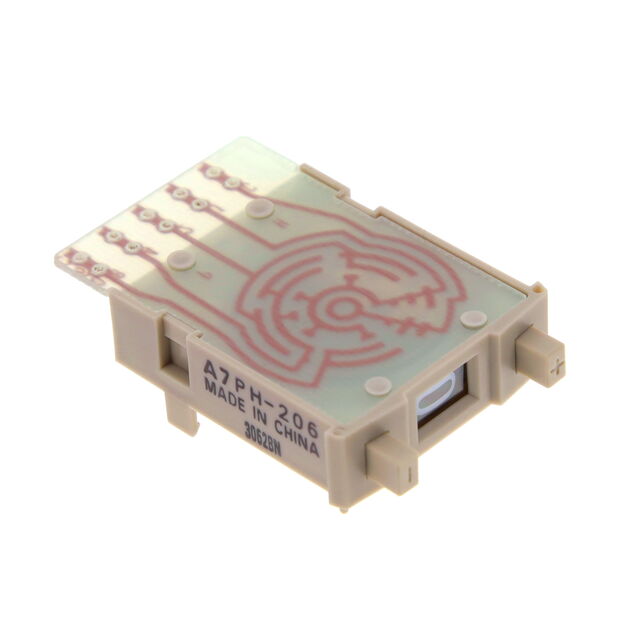

Omron Electronics Inc-EMC Div A7PH-206	Light Gray	1000000 Cycles	43 mm	Panel Mount Snap-In	Pushwheel	10 mm	0.394 in	9	0	1	0.15 A 28 VDC 125 VAC	Sold Separately	6.8 mm	0.268 in	BCD	Card Edge/Solder Pad	65 °C	-10 °C
Omron Electronics Inc-EMC Div A7PH-203	Light Gray	1000000 Cycles	43 mm	Panel Mount Snap-In	Pushwheel	10 mm	0.394 in	9	0	1	0.15 A 28 VDC 125 VAC	Sold Separately	6.8 mm	0.268 in		Card Edge/Solder Pad	65 °C	-10 °C	0.22 "	12.19 mm	8.89 mm	0.48 "	0.35 "	5.59 mm

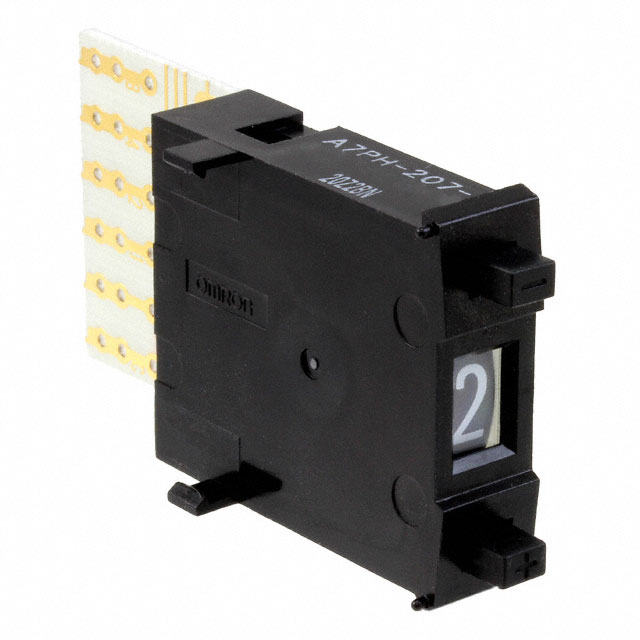

Omron Electronics Inc-EMC Div A7PH-207-1	Black	1000000 Cycles	55 mm	Panel Mount Snap-In	Pushwheel	10 mm	0.394 in	9	0	1	0.15 A 28 VDC 125 VAC	Sold Separately	6.8 mm	0.268 in	BCD	Card Edge/Solder Pad with Component Mounting	65 °C	-10 °C
Omron Electronics Inc-EMC Div A7PH-254	Light Gray	1000000 Cycles	43 mm	Panel Mount Snap-In	Pushwheel	10 mm	0.394 in			1	0.15 A 28 VDC 125 VAC	Sold Separately		0.157 in	Hexadecimal	Card Edge/Solder Pad	65 °C	-10 °C							4 mm	0 ~ 9 A ~ F
