EH12NLB2 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K

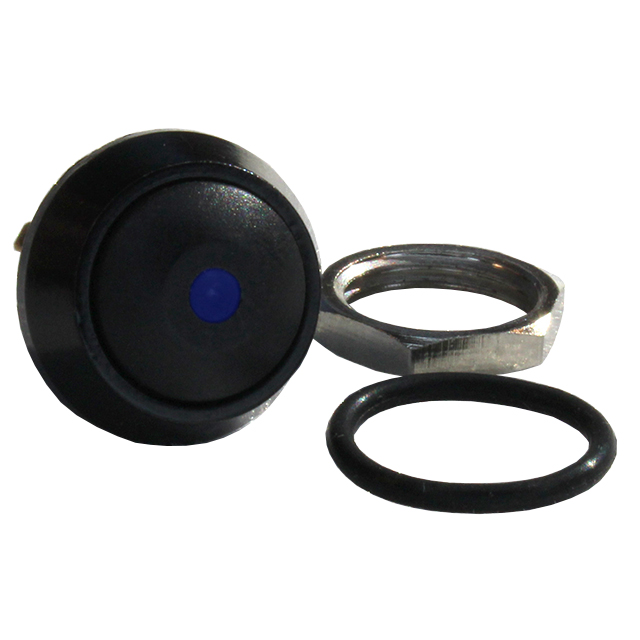

SWITCH PB SPST-NO 2A 48V
| Part | Mechanical Life | Electrical Life | Illumination Voltage (Nominal) | Panel Cutout Dimensions [diameter] | Mounting Type | Switch Function | Voltage Rating - DC | Ingress Protection | Type | Actuator Marking | Circuit | Illumination Type, Color | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Color - Actuator/Cap | Actuator Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 500000 Cycles | 200000 Cycles | 3.3 VDC | 12 mm | Panel Mount Front | Off-Mom | 48 V | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | No Marking | SPST-NO | Blue LED | Solder Lug | -20 ░C | 70 °C | Black | Button Round | 2 A |
