SWR25X Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Insulation Material	Contact Type	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Shape	Contact Finish - Post	Connector Type	Insulation Height	Insulation Height	Number of Positions Loaded	Termination	Insulation Color	Voltage Rating	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Style	Mounting Type	Contact Length - Post [x]	Contact Length - Post	Fastening Type	Contact Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating
Sullins Connector Solutions SWR25X-NRTC-S10-ST-BA	Nylon 6/6 Polyamide (PA66)	Male Pin	0.1 "	2.54 mm	1	Square	Tin	Header	0.449 in	11.4 mm	All	Solder	Beige	250 V	7.6 mm	0.299 in	Board to Cable/Wire	Through Hole	0.134 "	3.4 mm	Friction Lock	Brass	10	85 °C	-25 °C	Shrouded - 1 Wall	3 A	14.2 mm	0.559 "	UL94 V-0

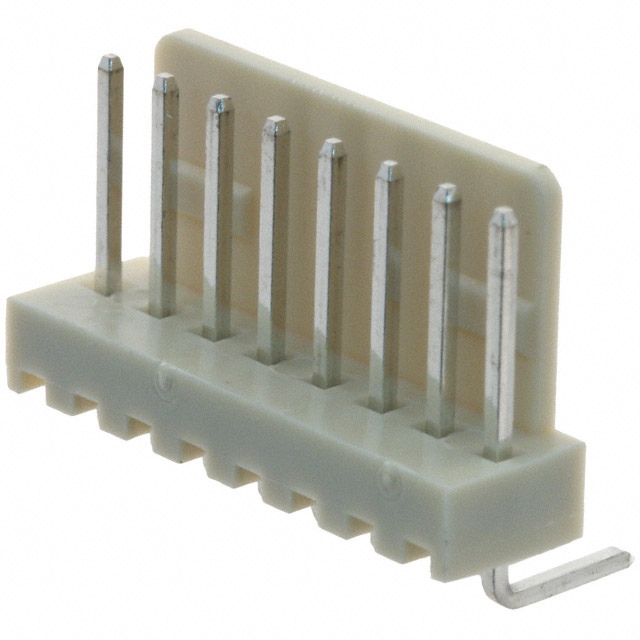

Sullins Connector Solutions SWR25X-NRTC-S08-RB-BA	Nylon 6/6 Polyamide (PA66)	Male Pin	0.1 "	2.54 mm	1	Square	Tin	Header			All	Solder	Beige	250 V			Board to Cable/Wire	Right Angle Through Hole	0.134 "	3.4 mm	Friction Lock	Brass	8	85 °C	-25 °C	Shrouded - 1 Wall	5 A			UL94 V-0	0.228 "	5.8 mm	0.303 in	7.7 mm

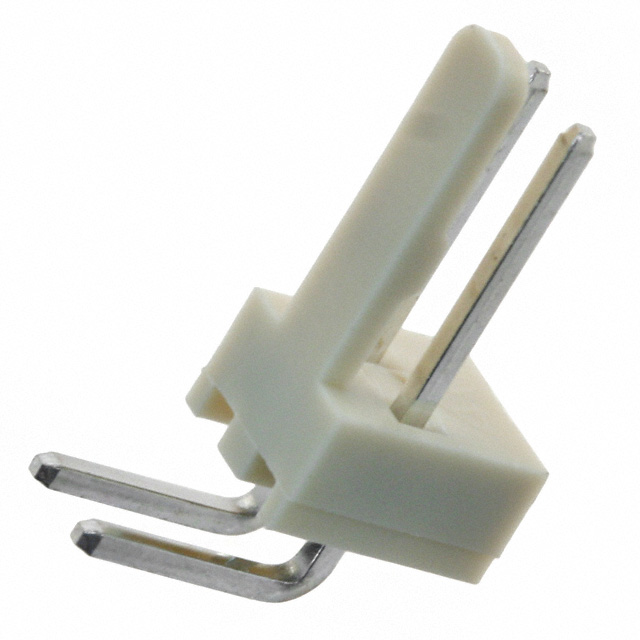

Sullins Connector Solutions SWR25X-NRTC-S02-RB-BA	Nylon 6/6 Polyamide (PA66)	Male Pin	0.1 "	2.54 mm	1	Square	Tin	Header			All	Solder	Beige	250 V			Board to Cable/Wire	Right Angle Through Hole	0.134 "	3.4 mm	Friction Lock	Brass	2	85 °C	-25 °C	Shrouded - 1 Wall	5 A			UL94 V-0	0.228 "	5.8 mm	0.303 in	7.7 mm
Sullins Connector Solutions SWR25X-NRTC-S10-RB-BA	Nylon 6/6 Polyamide (PA66)	Male Pin	0.1 "	2.54 mm	1	Square	Tin	Header			All	Solder	Beige	250 V			Board to Cable/Wire	Right Angle Through Hole	0.134 "	3.4 mm	Friction Lock	Brass	10	85 °C	-25 °C	Shrouded - 1 Wall	5 A			UL94 V-0	0.228 "	5.8 mm	0.303 in	7.7 mm
Sullins Connector Solutions SWR25X-NREC-S04-ST-BA	Nylon 6/6 Polyamide (PA66)	Male Pin	0.1 "	2.54 mm	1	Square	Tin	Header	0.449 in	11.4 mm	All	Solder	Beige	250 V			Board to Cable/Wire	Through Hole	0.134 "	3.4 mm	Friction Lock	Brass	4	85 °C	-25 °C	Shrouded - 1 Wall	4 A	14.2 mm	0.559 "	UL94 V-0			0.295 in	7.49 mm
Sullins Connector Solutions SWR25X-NREC-S06-ST-BA	Nylon 6/6 Polyamide (PA66)	Male Pin	0.1 "	2.54 mm	1	Square	Tin	Header	0.449 in	11.4 mm	All	Solder	Beige	250 V			Board to Cable/Wire	Through Hole	0.134 "	3.4 mm	Friction Lock	Brass	6	85 °C	-25 °C	Shrouded - 1 Wall	4 A	14.2 mm	0.559 "	UL94 V-0			0.295 in	7.49 mm
Sullins Connector Solutions SWR25X-NREC-S06-RB-BA	Nylon 6/6 Polyamide (PA66)	Male Pin	0.1 "	2.54 mm	1	Square	Tin	Header			All	Solder	Beige	250 V	7.6 mm	0.299 in	Board to Cable/Wire	Right Angle Through Hole	0.134 "	3.4 mm	Friction Lock	Brass	6	85 °C	-25 °C	Shrouded - 1 Wall	4 A			UL94 V-0	0.228 "	5.8 mm
Sullins Connector Solutions SWR25X-NRTC-S09-ST-BA	Nylon 6/6 Polyamide (PA66)	Male Pin	0.1 "	2.54 mm	1	Square	Tin	Header	0.449 in	11.4 mm	All	Solder	Beige	250 V	7.6 mm	0.299 in	Board to Cable/Wire	Through Hole	0.134 "	3.4 mm	Friction Lock	Brass	9	85 °C	-25 °C	Shrouded - 1 Wall	3 A	14.2 mm	0.559 "	UL94 V-0

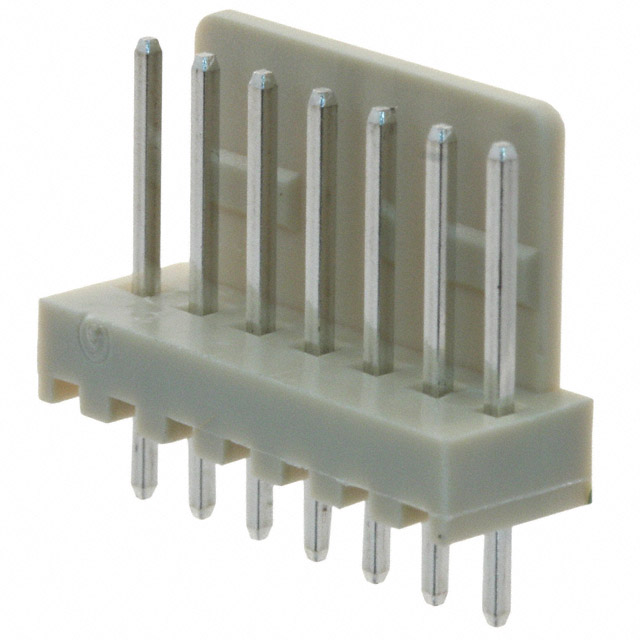

Sullins Connector Solutions SWR25X-NRTC-S07-ST-BA	Nylon 6/6 Polyamide (PA66)	Male Pin	0.1 "	2.54 mm	1	Square	Tin	Header	0.449 in	11.4 mm	All	Solder	Beige	250 V	7.6 mm	0.299 in	Board to Cable/Wire	Through Hole	0.134 "	3.4 mm	Friction Lock	Brass	7	85 °C	-25 °C	Shrouded - 1 Wall	3 A	14.2 mm	0.559 "	UL94 V-0
Sullins Connector Solutions SWR25X-NRTC-S04-ST-WH	Nylon 6/6 Polyamide (PA66)	Male Pin	0.1 "	2.54 mm	1	Square	Tin	Header	0.449 in	11.4 mm	All	Solder	White	250 V	7.6 mm	0.299 in	Board to Cable/Wire	Through Hole	0.134 "	3.4 mm	Friction Lock	Brass	4	85 °C	-25 °C	Shrouded - 1 Wall	3 A	14.2 mm	0.559 "	UL94 V-0
