DB101 Series

Catalog

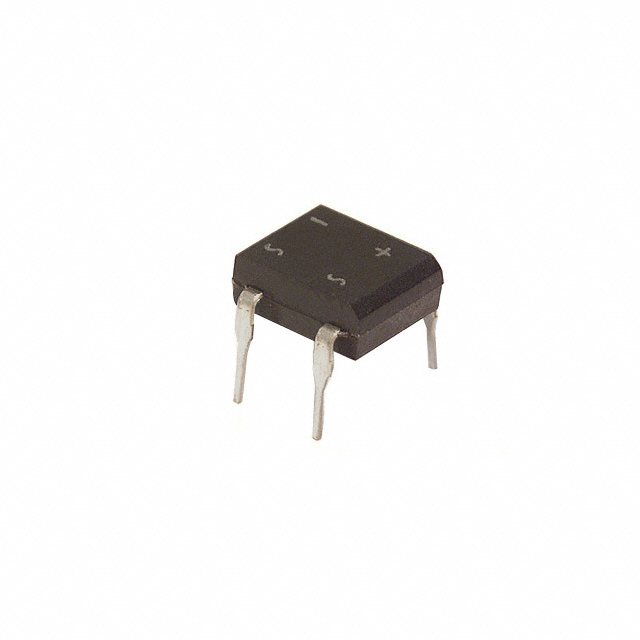

BRIDGE RECT 1PHASE 50V 1A DB-1

Part	Voltage - Forward (Vf) (Max) @ If	Diode Type	Mounting Type	Voltage - Peak Reverse (Max) [Max]	Technology	Current - Average Rectified (Io)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Reverse Leakage @ Vr	Supplier Device Package	Package / Case	Package / Case	Package / Case
MCC (Micro Commercial Components) DB101-BP	1.1 V	Single Phase	Through Hole	50 V	Standard	1 A	150 °C	-55 °C	10 µA	DB-1	0.321 in	4-EDIP	8.15 mm
MCC (Micro Commercial Components) DB101L-BP	1.05 V	Single Phase	Through Hole	50 V	Standard	1 A	150 °C	-55 °C	10 µA	DBL-1	0.321 in	4-EDIP	8.15 mm
MCC (Micro Commercial Components) DB101L-BP	1.05 V	Single Phase	Through Hole	50 V	Standard	1 A	150 °C	-55 °C	10 µA	DBL-1	0.321 in	4-EDIP	8.15 mm
