8124 Series

Catalog

CBL RIBN 25COND 0.1 GRAY

Part	Conductor Material	Insulation Resistance	First Conductor Mark	Shielding	Ribbon Thickness	Ribbon Thickness	Wire Gauge	Voltage	Pitch	Pitch	Jacket Color	Features	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Length	Length	Cable Type	Conductor Strand	Number of Conductors [custom]	Ribbon Width [custom]	Ribbon Width [custom]	Jacket (Insulation) Material	Number of Conductors	Length	Length [x]	Length [x]
3M Electronic Specialty 8124/25 100	Copper Tinned	10 GOhm	Red	Unshielded	0.06 in	1.52 mm	22 AWG	300 VDC	0.1 "	2.54 mm	Gray	Zippable	-20 ░C	105 ░C	UL E42769	100 '	30.48 m	Flat Cable	7 Strands 30 AWG	25	2.468 in	62.69 mm	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty 8124/35	Copper Tinned	10 GOhm	Red	Unshielded	0.06 in	1.52 mm	22 AWG	300 VDC	0.1 "	2.54 mm	Gray	Zippable	-20 ░C	105 ░C	UL E42769	100 '	30.48 m	Flat Cable	7 Strands 30 AWG		3.468 in	88.09 mm	Poly-Vinyl Chloride (PVC)	35
3M Electronic Specialty 8124/06 100	Copper Tinned	10 GOhm	Red	Unshielded	0.06 in	1.52 mm	22 AWG	300 VDC	0.1 "	2.54 mm	Gray	Zippable	-20 ░C	105 ░C	UL E42769	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	Flat Cable	7 Strands 30 AWG		0.568 in	14.43 mm	Poly-Vinyl Chloride (PVC)	6	Enter Number of Feet in Order Quantity	50 ft	15.24 m
3M Electronic Specialty 8124/30	Copper Tinned	10 GOhm	Red	Unshielded	0.06 in	1.52 mm	22 AWG	300 VDC	0.1 "	2.54 mm	Gray	Zippable	-20 ░C	105 ░C	UL E42769	100 '	30.48 m	Flat Cable	7 Strands 30 AWG				Poly-Vinyl Chloride (PVC)	30
3M Electronic Specialty 8124/24 100	Copper Tinned	10 GOhm	Red	Unshielded	0.06 in	1.52 mm	22 AWG	300 VDC	0.1 "	2.54 mm	Gray	Zippable	-20 ░C	105 ░C	UL E42769	100 '	30.48 m	Flat Cable	7 Strands 30 AWG		2.368 in	60.15 mm	Poly-Vinyl Chloride (PVC)	24
3M Electronic Specialty 8124/14 100	Copper Tinned	10 GOhm	Red	Unshielded	0.06 in	1.52 mm	22 AWG	300 VDC	0.1 "	2.54 mm	Gray	Zippable	-20 ░C	105 ░C	UL E42769	100 '	30.48 m	Flat Cable	7 Strands 30 AWG		1.368 in	34.75 mm	Poly-Vinyl Chloride (PVC)	14
3M Electronic Specialty 8124/18	Copper Tinned	10 GOhm	Red	Unshielded	0.06 in	1.52 mm	22 AWG	300 VDC	0.1 "	2.54 mm	Gray	Zippable	-20 ░C	105 ░C	UL E42769	100 '	30.48 m	Flat Cable	7 Strands 30 AWG		1.768 in	44.91 mm	Poly-Vinyl Chloride (PVC)	18

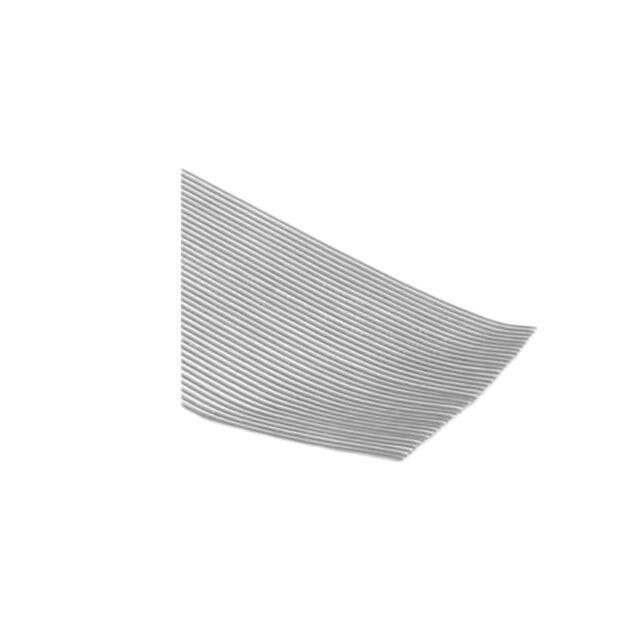

3M Electronic Specialty 8124/07 100	Copper Tinned	10 GOhm	Red	Unshielded	0.06 in	1.52 mm	22 AWG	300 VDC	0.1 "	2.54 mm	Gray	Zippable	-20 ░C	105 ░C	UL E42769	100 '	30.48 m	Flat Cable	7 Strands 30 AWG		0.668 in	16.97 mm	Poly-Vinyl Chloride (PVC)	7	Enter Number of Feet in Order Quantity
3M Electronic Specialty 8124/13 100	Copper Tinned	10 GOhm	Red	Unshielded	0.06 in	1.52 mm	22 AWG	300 VDC	0.1 "	2.54 mm	Gray	Zippable	-20 ░C	105 ░C	UL E42769	100 '	30.48 m	Flat Cable	7 Strands 30 AWG		1.268 in	32.21 mm	Poly-Vinyl Chloride (PVC)	13
3M Electronic Specialty 8124/33	Copper Tinned	10 GOhm	Red	Unshielded	0.06 in	1.52 mm	22 AWG	300 VDC	0.1 "	2.54 mm	Gray		-20 ░C	105 ░C				Flat Cable	7 Strands 30 AWG		3.268 in	83.01 mm	Poly-Vinyl Chloride (PVC)	33
