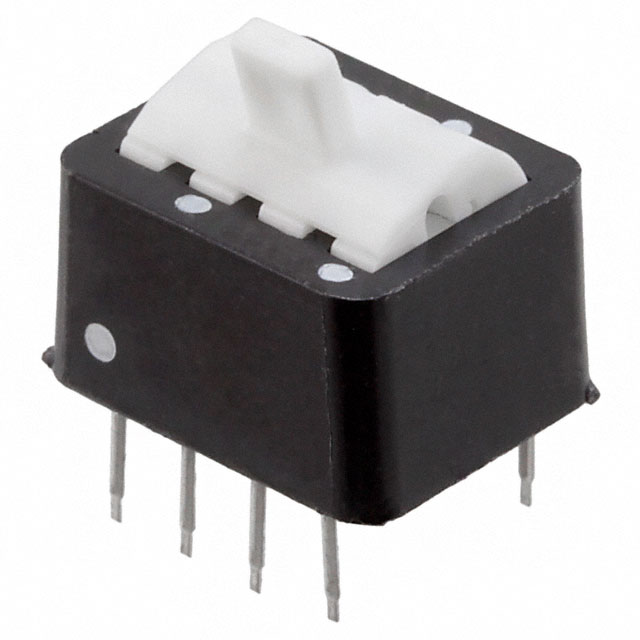

8-435470 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SW TOGGLE DIP DPDT 0.025A 24V
| Part | Body Material | Electrical Life | Length | Length | Contact Finish | Washable | Actuator Type | Actuator Level | Pitch | Pitch | Contact Material | Termination Style | Number of Positions | Circuit | Height Above Board [z] | Height Above Board [z] | Voltage Rating | Mounting Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polyester (PET) Glass Filled | 7000 Cycles | 12.19 mm | 0.48 in | Gold | Toggle | Raised | 2.54 mm | 0.1 " | Copper Alloy | PC Pin | 1 | DPDT | 0.46 in | 11.68 mm | 24 VDC | Through Hole | 25 mA | -55 C | 105 ░C |
