Pushbutton Switches RAMO 22 T M12 1NO Blue
Pushbutton Switches RAMO 22 T M12 1NO Blue
| Part | Ingress Protection | Actuator Marking | Color - Actuator/Cap | Type | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Illumination Voltage (Nominal) | Voltage Rating - DC | Mounting Type | Actuator Type | Illumination Type, Color | Current Rating (Amps) | Switch Function | Panel Cutout Dimensions [diameter] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

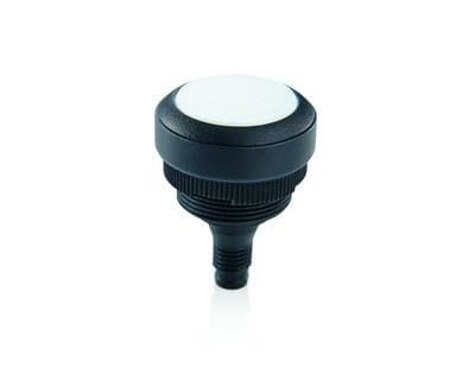

 RAFI USA | IP69K - Dust Tight High Temp Water Jets Waterproof | No Marking | White | Illuminated Standard | -25 °C | 70 °C | SPST-NO | 24 V | 35 V | Panel Mount Front | Button Flush Round | LED White | 100 mA | Off-Mom | 22.3 mm | Connector |
 RAFI USA | IP69K - Dust Tight High Temp Water Jets Waterproof | No Marking | Blue | Illuminated Standard | -25 °C | 70 °C | SPST-NO | 24 V | 35 V | Panel Mount Front | Button Flush Round | Blue LED | 100 mA | Off-Mom | 22.3 mm | Connector |
 RAFI USA | ||||||||||||||||
 RAFI USA | IP69K - Dust Tight High Temp Water Jets Waterproof | No Marking | Green | Illuminated Standard | -25 °C | 70 °C | SPST-NO | 24 V | 35 V | Panel Mount Front | Button Flush Round | Green LED | 100 mA | Off-Mom | 22.3 mm | Connector |
