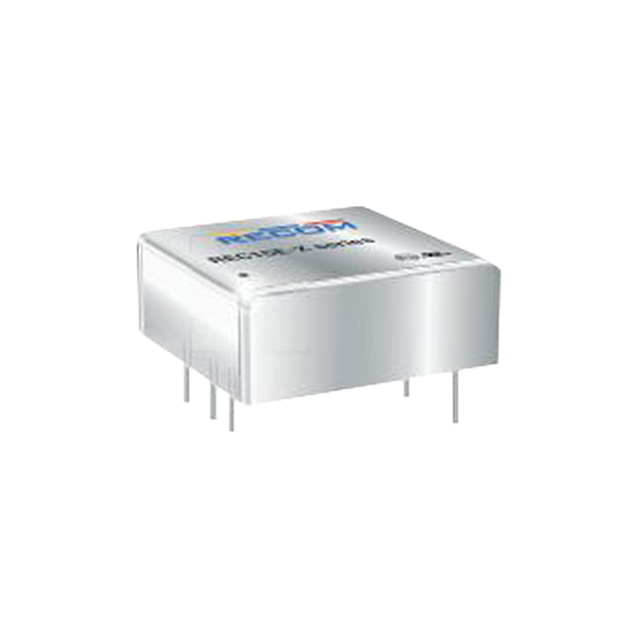

REC15E-Z Series
Manufacturer: Recom Power
Beta
⌘K

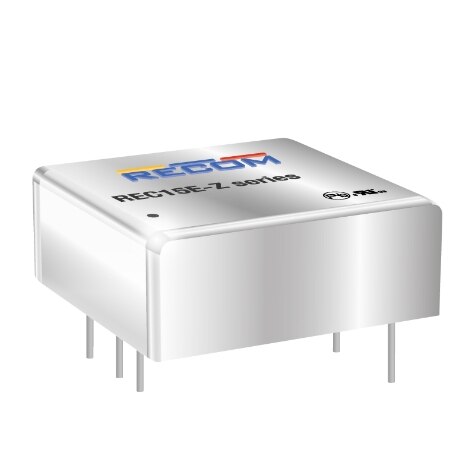

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 15 W, 1 OUTPUT, 5 V
| Part | Number of Outputs | Type | Applications | Features | Voltage - Input (Max) [Max] | Mounting Type | Efficiency | Voltage - Isolation | Voltage - Output 1 | Package / Case | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 1 | Isolated Module | ITE (Commercial) | OCP SCP UVLO | 75 V | Through Hole | 88 % | 2000 V | 5 V | 6-DIP Module 4 Leads | 3 A | 18 V | 25.4 mm | 10 mm | 0.39 " | 1 " | 1 in | 25.4 mm | 105 C | -40 °C | 15 W | |||
 Recom Power | 2 | Isolated Module | ITE (Commercial) | OCP SCP UVLO | 36 V | Through Hole | 89 % | 2000 V | 15 V | 6-DIP Module | 9 V | 25.4 mm | 10 mm | 0.39 " | 1 " | 1 in | 25.4 mm | 105 C | -40 °C | 15 W | -15 V | 500 mA | ||
 Recom Power | 1 | Isolated Module | ITE (Commercial) | OCP SCP UVLO | 75 V | Through Hole | 89 % | 2000 V | 12 V | 6-DIP Module | 1.25 A | 18 V | 25.4 mm | 10 mm | 0.39 " | 1 " | 1 in | 25.4 mm | 105 C | -40 °C | 15 W | |||
Recom Power | 1 | Isolated Module | ITE (Commercial) | OCP SCP UVLO | 36 V | Through Hole | 89 % | 2000 V | 15 V | 6-DIP Module 4 Leads | 1 A | 9 V | 25.4 mm | 10 mm | 0.39 " | 1 " | 1 in | 25.4 mm | 105 C | -40 °C | 15 W | |||
Recom Power | 2 | Isolated Module | ITE (Commercial) | OCP SCP UVLO | 75 V | Through Hole | 2000 V | 15 V | 6-DIP Module | 18 V | 25.4 mm | 10 mm | 0.39 " | 1 " | 1 in | 25.4 mm | 105 C | -40 °C | 15 W | -15 V | 500 mA | |||
Recom Power | 2 | Isolated Module | ITE (Commercial) | OCP SCP UVLO | 36 V | Through Hole | 87 % | 2000 V | 12 V | 6-DIP Module | 625 mA | 9 V | 25.4 mm | 10 mm | 0.39 " | 1 " | 1 in | 25.4 mm | 105 C | -40 °C | 15 W | -12 V | 625 mA | |
 Recom Power | 1 | Isolated Module | ITE (Commercial) | OCP SCP UVLO | 75 V | Through Hole | 90 % | 2000 V | 24 V | 6-DIP Module | 625 mA | 18 V | 25.4 mm | 10 mm | 0.39 " | 1 " | 1 in | 25.4 mm | 105 C | -40 °C | 15 W | |||
Recom Power | 1 | Isolated Module | ITE (Commercial) | OCP SCP UVLO | 75 V | Through Hole | 2000 V | 15 V | 6-DIP Module 4 Leads | 1 A | 18 V | 25.4 mm | 10 mm | 0.39 " | 1 " | 1 in | 25.4 mm | 105 C | -40 °C | 15 W | ||||
Recom Power | 1 | Isolated Module | ITE (Commercial) | OCP SCP UVLO | 36 V | Through Hole | 88 % | 2000 V | 5 V | 6-DIP Module | 3 A | 9 V | 25.4 mm | 10 mm | 0.39 " | 1 " | 1 in | 25.4 mm | 105 C | -40 °C | 15 W | |||
Recom Power | 2 | Isolated Module | ITE (Commercial) | OCP SCP UVLO | 75 V | Through Hole | 2000 V | 15 V | 6-DIP Module 5 Leads | 18 V | 25.4 mm | 10 mm | 0.39 " | 1 " | 1 in | 25.4 mm | 105 C | -40 °C | 15 W | -15 V | 500 mA |
