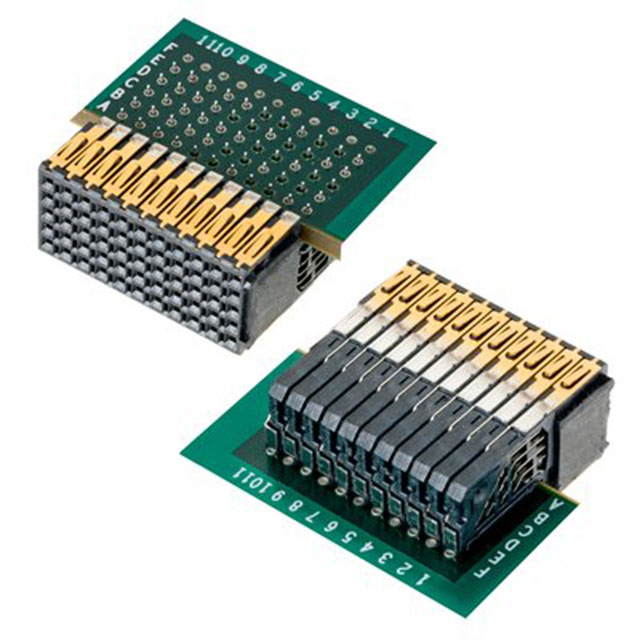

UHM-S110 Series

Catalog

CONN RECEPT 132POS 2MM PRESS-FIT

Part	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Termination	Number of Positions	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions Loaded	Contact Finish	Connector Usage	Mounting Type	Number of Rows
3M Electronic Specialty UHM-S110B0-5AP1-TG30	Upper and Lower Shield	1 A	-55 C	125 °C	Receptacle Female Sockets	Press-Fit	132	B 22	30 Áin	0.76 Ám	0.079 in	2 mm	All	Gold	CompactPCI	Right Angle Through Hole	1 5
3M Electronic Specialty UHM-S110A3-5AP1-KR	Upper and Lower Shield	1 A	-55 C	125 °C	Receptacle Female Sockets	Press-Fit	110	A 22	30 Áin	0.76 Ám	0.079 in	2 mm	All	Gold	CompactPCI	Right Angle Through Hole	5
3M Electronic Specialty UHM-S110B3-5AP1-TG30	Upper and Lower Shield	1 A	-55 C	125 °C	Receptacle Female Sockets	Press-Fit	132	B 22	30 Áin	0.76 Ám	0.079 in	2 mm	All	Gold	CompactPCI	Right Angle Through Hole	1 5
3M Electronic Specialty UHM-S110APWR3-5AP1-TG30	Upper and Lower Shield	1 A	-55 C	125 °C	Receptacle Female Sockets	Press-Fit	110	A 22	30 Áin	0.76 Ám	0.079 in	2 mm	All	Gold	CompactPCI	Right Angle Through Hole	5
3M Electronic Specialty UHM-S110A3-5AP2-KR	Upper and Lower Shield	1 A	-55 C	125 °C	Receptacle Female Sockets	Press-Fit	110	A 22	30 Áin	0.76 Ám	0.079 in	2 mm	All	Gold	CompactPCI	Right Angle Through Hole	5
