VER05 Series

Manufacturer: XP Power

Catalog

AC/DC WALL MOUNT ADAPTER 9V 5W

Part	Weight	Weight	Input Connector	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	Polarization	Standard Number	Voltage - Output	Form	Efficiency	No Load Power Consumption	Power (Watts)	Operating Temperature [Max]	Region Utilized	Approval Agency	Cord Length	Cord Length	Applications
XP Power VER05US090-JA	127.01 g	0.28 lb	Multi-Blade	1.45 in	42.9 mm	2.16 in	1.69 in	54.9 mm	37 mm	550 mA	2.1 mm	5.5 mm	Barrel Plug	12 mm	264 VAC	90 VAC	Multi-Blade (Included)	Positive Center	62368-1	9 V	Wall Mount	Level VI	100 mW	5 W	60 °C	International	CB	1.5 m	59 in	ITE (Commercial)
XP Power VER05US120-JA	127.01 g	0.28 lb	Multi-Blade	1.45 in	42.9 mm	2.16 in	1.69 in	54.9 mm	37 mm	420 mA	2.1 mm	5.5 mm	Barrel Plug	12 mm	264 VAC	90 VAC	Multi-Blade (Included)	Positive Center	62368-1	12 V	Wall Mount	Level VI	100 mW	5 W	60 °C	International	CB	1.5 m	59 in	ITE (Commercial)
XP Power VER05US060-JA	127.01 g	0.28 lb	Multi-Blade	1.45 in	42.9 mm	2.16 in	1.69 in	54.9 mm	37 mm	830 mA	2.1 mm	5.5 mm	Barrel Plug	12 mm	264 VAC	90 VAC	Multi-Blade (Included)	Positive Center	62368-1	6 V	Wall Mount	Level V	100 mW	5 W	60 °C	International	CB	1.5 m	59 in	ITE (Commercial)

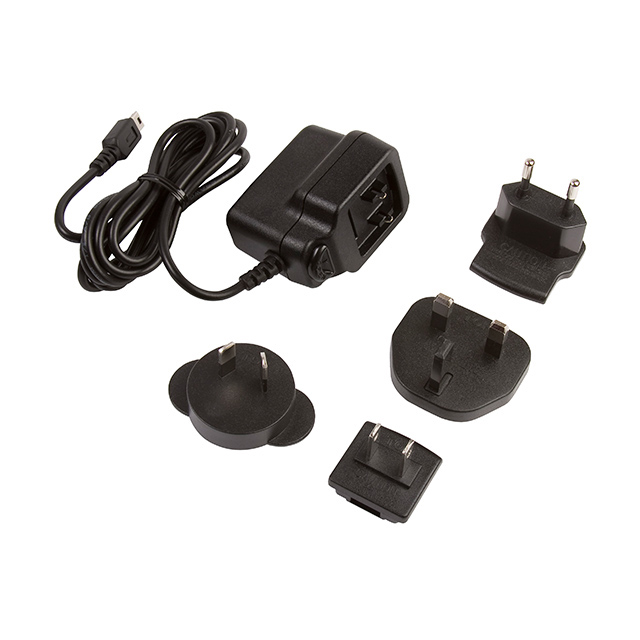

XP Power VER05US050-MB	127.01 g	0.28 lb	Multi-Blade	1.45 in	42.9 mm	2.16 in	1.69 in	54.9 mm	37 mm	1 A			USB Mini		264 VAC	90 VAC	Multi-Blade (Included)		62368-1	5 V	Wall Mount	Level VI	100 mW	5 W	60 °C	International	CB	1.5 m	59 in	ITE (Commercial)

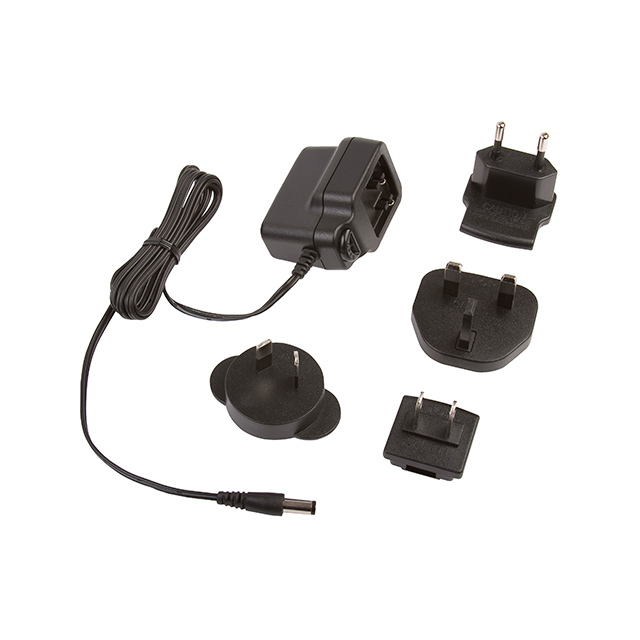

XP Power VER05US050-JA	127.01 g	0.28 lb	Multi-Blade (Included)	1.45 in	42.9 mm	2.16 in	1.69 in	54.9 mm	37 mm	1 A	2.1 mm	5.5 mm	Barrel Plug	12 mm	264 VAC	90 VAC	Multi-Blade (Included)	Positive Center	62368-1	5 V	Wall Mount	Level VI	100 mW	5 W	60 °C	International	CB	1.5 m	59 in	ITE (Commercial)
