U-Channel Power Supply 24V 500 Watt
U-Channel Power Supply 24V 500 Watt
| Part | Minimum Load Required | Standard Number | Mounting Type | Features | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Type | Approval Agency | Power (Watts) | Applications | Voltage - Output 1 | Number of Outputs | Efficiency | Voltage - Isolation | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

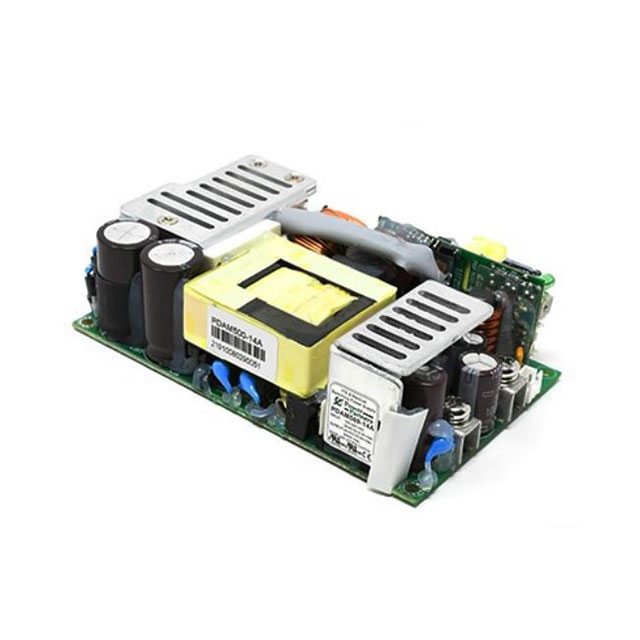

 TT Electronics/BI | 60950-1 | Chassis Mount | Adjustable Output DC Input Capable Universal Input | 1.38 " | 127.8 mm | 35.1 mm | 3 " | 76.2 mm | 5.03 in | Open Frame | CE cURus | 240 Watts 500 W | ITE (Commercial) | 48 V | 1 | 93 % | 4000 V | 90 VAC 120 VDC | 264 VAC 370 VDC | 10.41 A | |||||||

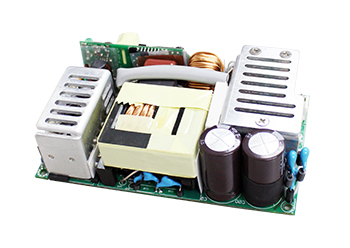

TT Electronics/BI | 60950-1 | Chassis Mount | DC Input Capable PFC Remote On/Off Standby Output Universal Input | 35.1 mm | 127.8 mm | 76.2 mm | Open Frame | CE cURus | 212 W 500 W | ITE (Commercial) | 15 V | 1 | 93 % | 4000 V | 90 VAC 120 VDC | 264 VAC 370 VDC | 33.3 A | 1.38 in | 5.03 in | 3 " | |||||||
 TT Electronics/BI | 60601-1 60950-1 62368-1 | Chassis Mount | PFC Remote On/Off Standby Output Universal Input | 1.38 " | 127.8 mm | 35.1 mm | 3 " | 76.2 mm | 5.03 in | Open Frame | CE cURus | 240 Watts | ITE (Commercial) Medical | 24 V | 1 | 92 % | 4000 V | 85 VAC 120 VDC | 264 VAC 370 VDC | 20.8 A | -30 °C | 70 °C | 499 W | ||||
 TT Electronics/BI | 60950-1 | Chassis Mount | Adjustable Output DC Input Capable Universal Input | 1.38 " | 127.8 mm | 35.1 mm | 3 " | 76.2 mm | 5.03 in | Open Frame | CE cURus | 240 Watts | ITE (Commercial) | 12 V | 1 | 93 % | 4000 V | 90 VAC 120 VDC | 264 VAC 370 VDC | 41.5 A | 498 W |
