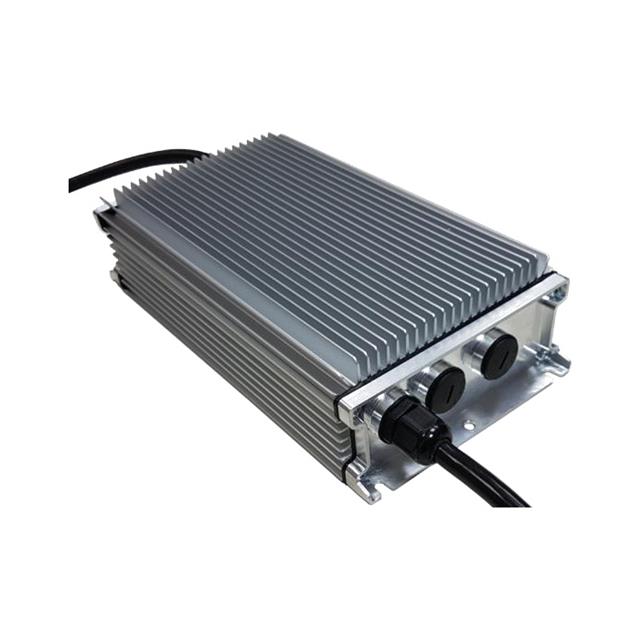

ABS601 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
POWER SUPPLY, AC-DC, 48V, 12.5A ROHS COMPLIANT: YES
| Part | Minimum Load Required | Efficiency | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Approval Agency | Type | Standard Number | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Mounting Type | Number of Outputs | Power (Watts) | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 94 % | ITE (Commercial) | 300 V 305 VAC | 85 VAC 170 VDC | 48 V | CE cURus DEMKO | Enclosed | 60950-1 | Adjustable Output IP67 PFC Remote On/Off Remote Sense Universal Input | 9.86 in | 125 mm | 60 mm | 2.36 in | 250.5 mm | 4.92 in | -30 °C | 70 °C | 4000 V | Chassis Mount | 1 | 600 W | 12.5 A | |
 Bel Fuse Inc. | 94 % | ITE (Commercial) | 300 V 305 VAC | 85 VAC 170 VDC | 24 V | CE cURus DEMKO | Enclosed | 60950-1 | Adjustable Output IP67 PFC Remote On/Off Remote Sense Universal Input | 9.86 in | 125 mm | 60 mm | 2.36 in | 250.5 mm | 4.92 in | -30 °C | 70 °C | 4000 V | Chassis Mount | 1 | 600 W | 25 A |
