228EDVA Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Mechanical Life	Circuit	Actuator Orientation	Mounting Type	Illumination	Switch Function	Illumination Type, Color	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Ingress Protection	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Outline [y]	Outline [x]	Operating Force	Illumination Voltage (Nominal)

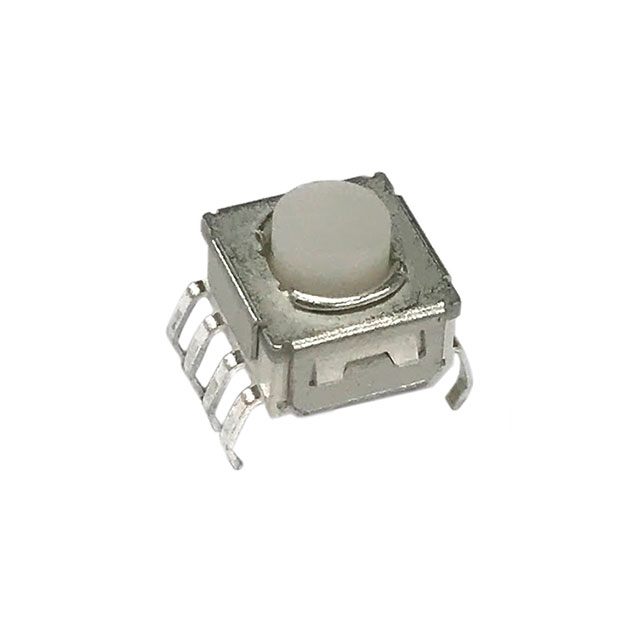

CTS Electrocomponents 228EDVARF	0.7 mm	100000 Cycles	SPST-NO	Top Actuated	Through Hole	Illuminated	Off-Mom	LED Red	5.4 mm	0.05 A 12 VDC	IP67 - Dust Tight Waterproof	Standard	85 °C	-40 C	PC Pin	6.8 mm	7.2 mm	0.2 kgf
CTS Electrocomponents 228EDVARGF	0.7 mm	100000 Cycles	SPST-NO	Top Actuated	Through Hole	Illuminated	Off-Mom	Green/Red LED	5.4 mm	0.05 A 12 VDC		Standard	85 °C	-40 C	PC Pin	6.8 mm	7.2 mm	0.2 kgf	1.7 VDC 1.9 VDC
CTS Electrocomponents 228EDVARAF	0.7 mm	100000 Cycles	SPST-NO	Top Actuated	Through Hole	Illuminated	Off-Mom	Amber LED Red	5.4 mm	0.05 A 12 VDC		Standard	85 °C	-40 C	PC Pin	6.8 mm	7.2 mm	0.2 kgf
