0041.9157 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH PUSH DPST-NO 200MA 60V
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [diameter] | Termination Style | Ingress Protection | Circuit | Actuator Type | Switch Function | Actuator Marking | Voltage Rating - AC | Current Rating (Amps) | Type | Voltage Rating - DC | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Color - Actuator/Cap | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

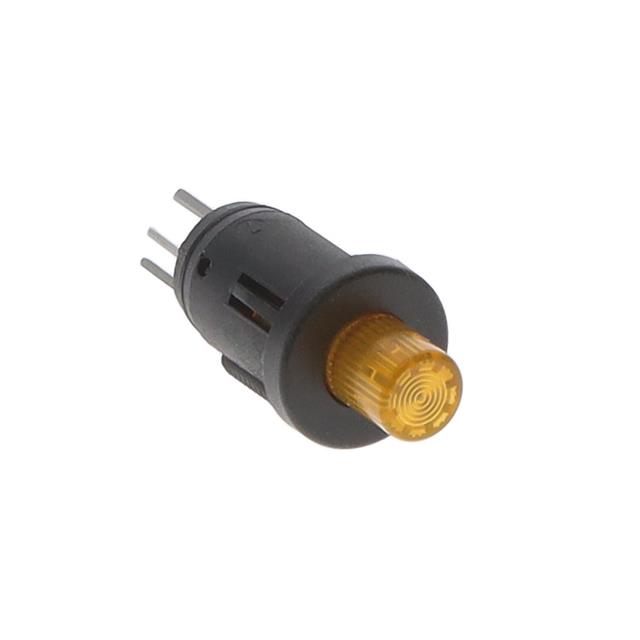

 SCHURTER Inc. | 10000 Steps | 10000 Cycles | 8 mm | PC Pin | IP40 | DPST-NO | Button Round | Off-On | No Marking | 60 V | 200 mA | Illuminated Standard | 50 VDC | Panel Mount Front | -25 °C | 60 °C | |||

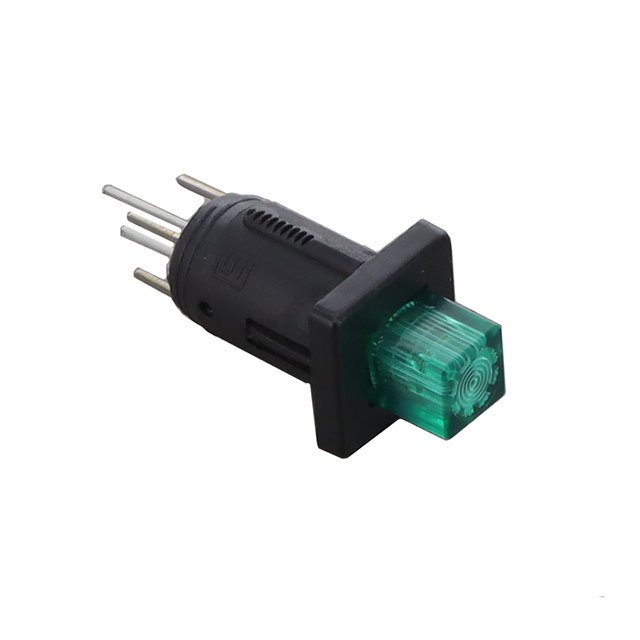

 SCHURTER Inc. | 10000 Steps | 10000 Cycles | 8 mm | PC Pin | IP40 | DPST-NO | Button Square | Off-On | No Marking | 60 V | 200 mA | Illuminated Standard | 50 VDC | Panel Mount Front | -25 °C | 60 °C | Green | 2 VDC | Green LED |
