1546073 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

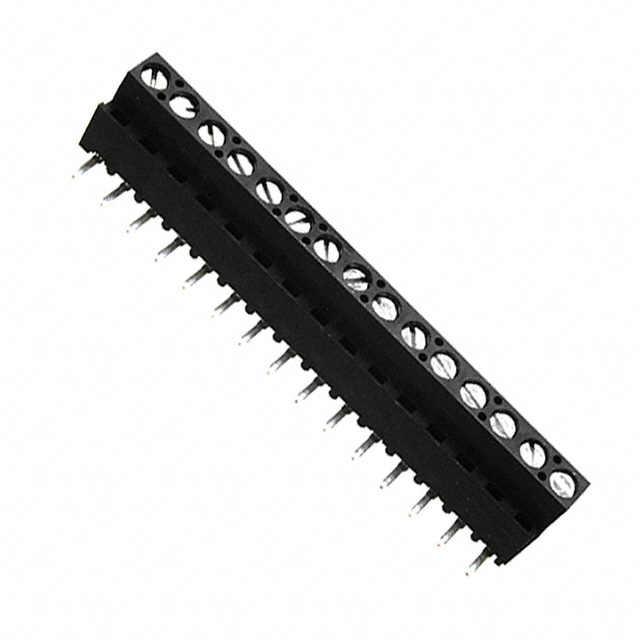

TERM BLK 15P TOP ENT 5.08MM PCB
| Part | Screw Material - Plating | Clamp Material - Plating | Contact Material - Plating | Screw Thread | Torque - Screw | Torque - Screw | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Features | Wire Gauge [Max] | Wire Gauge [Min] | Number of Levels | Voltage | Pitch | Pitch | Mating Orientation | Wire Termination | Color | Positions Per Level | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass - Nickel Plated | Brass - Nickel Plated | Brass - Tin Plated | M3 | 7 Lb-In | 0.79 Nm | -40 C | 105 ░C | Through Hole | Interlocking (Side) | 30 AWG | 12 AWG | 1 | 300 VDC | 5.08 mm | 0.2 in | Vertical with Board | Screw - Rising Cage Clamp | Black | 15 | 17.5 A |
 TE Connectivity AMP Connectors | Brass - Nickel Plated | Brass - Nickel Plated | Brass - Tin Plated | M3 | 7 Lb-In | 0.79 Nm | -40 C | 105 ░C | Through Hole | Interlocking (Side) | 30 AWG | 12 AWG | 1 | 300 VDC | 5.08 mm | 0.2 in | Vertical with Board | Screw - Rising Cage Clamp | Black | 22 | 17.5 A |

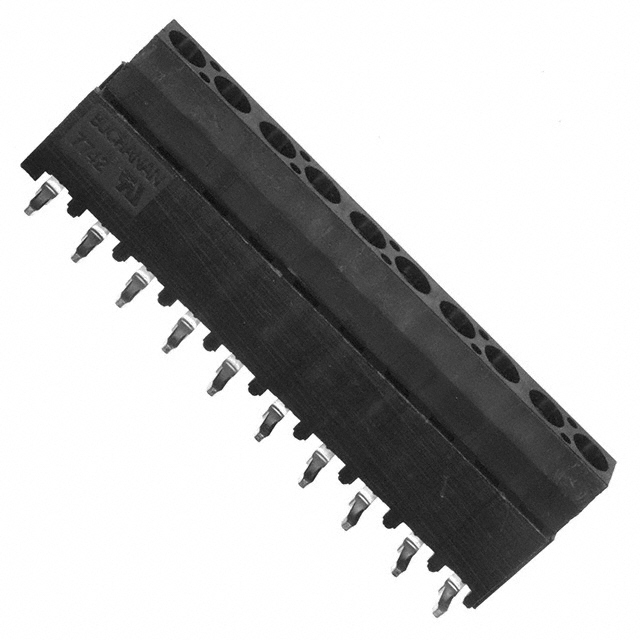

 TE Connectivity AMP Connectors | Brass - Nickel Plated | Brass - Nickel Plated | Brass - Tin Plated | M3 | 7 Lb-In | 0.79 Nm | -40 C | 105 ░C | Through Hole | Interlocking (Side) | 30 AWG | 12 AWG | 1 | 300 VDC | 5.08 mm | 0.2 in | Vertical with Board | Screw - Rising Cage Clamp | Black | 10 | 17.5 A |

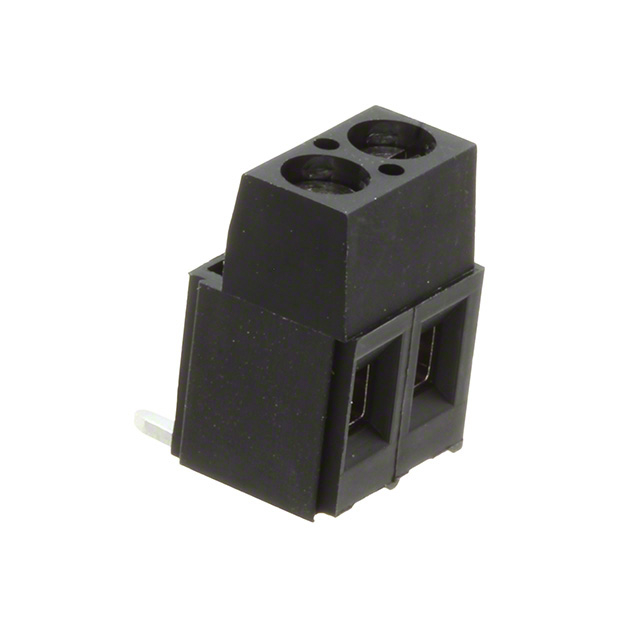

 TE Connectivity AMP Connectors | Brass - Nickel Plated | Brass - Nickel Plated | Brass - Tin Plated | M3 | 7 Lb-In | 0.79 Nm | -40 C | 105 ░C | Through Hole | Interlocking (Side) | 30 AWG | 12 AWG | 1 | 300 VDC | 5.08 mm | 0.2 in | Vertical with Board | Screw - Rising Cage Clamp | Black | 2 | 17.5 A |
TE Connectivity AMP Connectors | Brass - Nickel Plated | Brass - Nickel Plated | Brass - Tin Plated | M3 | 7 Lb-In | 0.79 Nm | -40 C | 105 ░C | Through Hole | Interlocking (Side) | 30 AWG | 12 AWG | 1 | 300 VDC | 5.08 mm | 0.2 in | Vertical with Board | Screw - Rising Cage Clamp | Black | 23 | 17.5 A |
 TE Connectivity AMP Connectors | Brass - Nickel Plated | Brass - Nickel Plated | Brass - Tin Plated | M3 | 7 Lb-In | 0.79 Nm | -40 C | 105 ░C | Through Hole | Interlocking (Side) | 30 AWG | 12 AWG | 1 | 300 VDC | 5.08 mm | 0.2 in | Vertical with Board | Screw - Rising Cage Clamp | Black | 14 | 17.5 A |

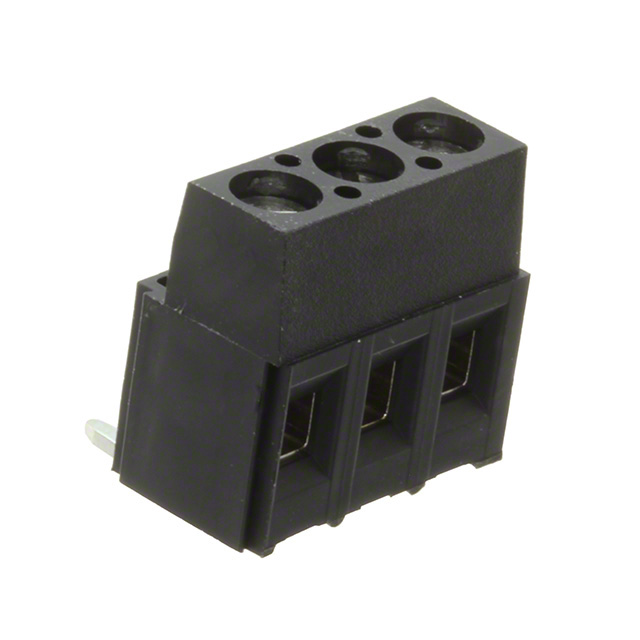

 TE Connectivity AMP Connectors | Brass - Nickel Plated | Brass - Nickel Plated | Brass - Tin Plated | M3 | 7 Lb-In | 0.79 Nm | -40 C | 105 ░C | Through Hole | Interlocking (Side) | 30 AWG | 12 AWG | 1 | 300 VDC | 5.08 mm | 0.2 in | Vertical with Board | Screw - Rising Cage Clamp | Black | 3 | 17.5 A |
