19398100 Series
Manufacturer: HARTING
Beta
⌘K

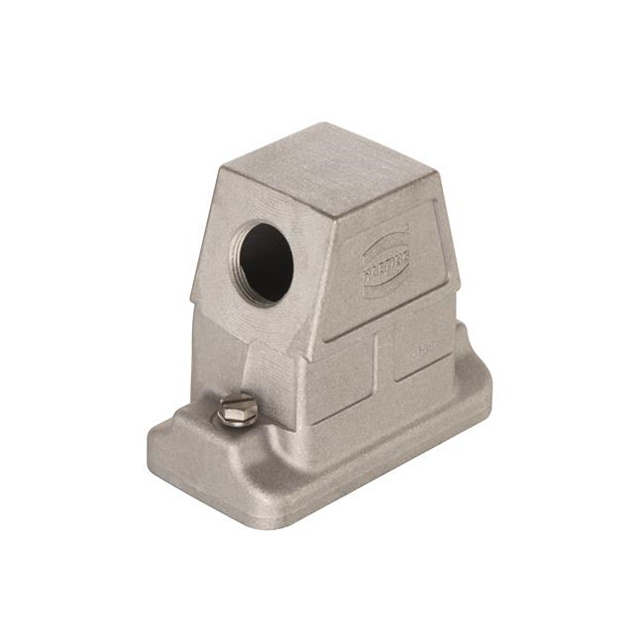

HAN 10 HP DIRECT EMC HOOD, SIDE ENTRY, M32
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Connector Type | Style | Ingress Protection | Thread Size | Housing Finish | Size | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 125 °C | -40 C | Aluminum Die Cast | 57 mm | 3.74 " | 106 mm | 4.173 " | 95 mm | 2.244 " | Hood | Side Entry | IP66 IP68 IP69K | M32 | EMC Coating | 10B | Screw Locks on Hood |

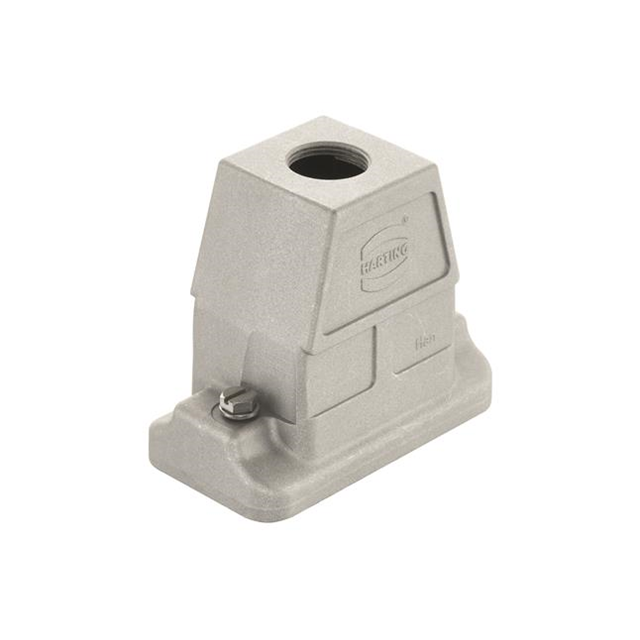

 HARTING | 125 °C | -40 C | Aluminum Die Cast | 57 mm | 3.701 " | 106 mm | 4.173 " | 94 mm | 2.244 " | Hood | Top Entry | IP66 IP68 IP69K | EMC Coating | 10B | Screw Locks on Hood | |
HARTING | 125 °C | -40 C | Aluminum Die Cast | 57 mm | 3.701 " | 106 mm | 4.173 " | 94 mm | 2.244 " | Hood | Top Entry | IP66 IP68 IP69K | M32 | EMC Coating | 10B | Screw Locks on Hood |
HARTING | 125 °C | -40 C | Aluminum Die Cast | 57 mm | 3.74 " | 106 mm | 4.173 " | 95 mm | 2.244 " | Hood | Side Entry | IP66 IP68 IP69K | M25 | EMC Coating | 10B | Screw Locks on Hood |
