MPEV Series
Manufacturer: KEMET
Beta
⌘K
POWER INDUCTOR (SMD), AEC-Q200, 22 ΜH, 2.7 A, SHIELDED, 3.5 A, MPEV SERIES
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Shielding | Package / Case | Current - Saturation (Isat) | Frequency - Self Resonant | Current Rating (Amps) | Mounting Type | DC Resistance (DCR) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Inductance Frequency - Test | Inductance | Tolerance | Material - Core | Ratings | Height - Seated (Max) | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

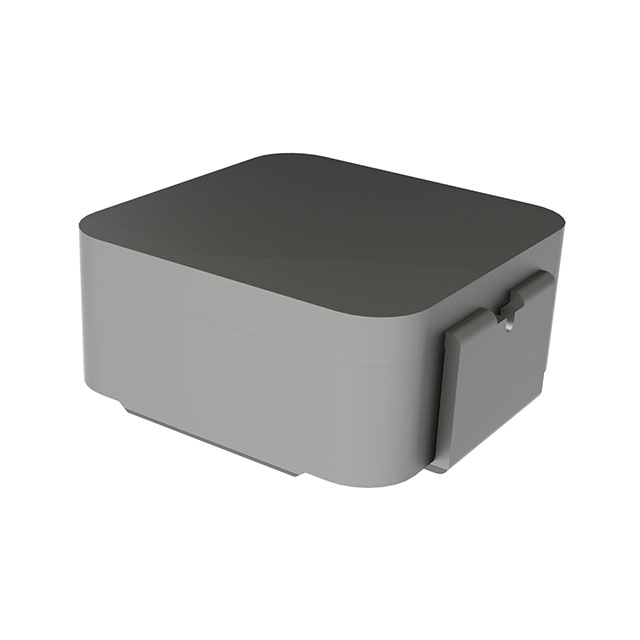

 KEMET | 0.256 " | 6.5 mm | 0.276 " | 7 mm | 0.118 " | 3 mm | Shielded | Nonstandard | 3.5 A | 9.6 MHz | 2.7 A | Surface Mount | 186.3 mOhm | 180 °C | -55 C | 100 kHz | 22 µH | 20 % | Metal Composite | AEC-Q200 | ||

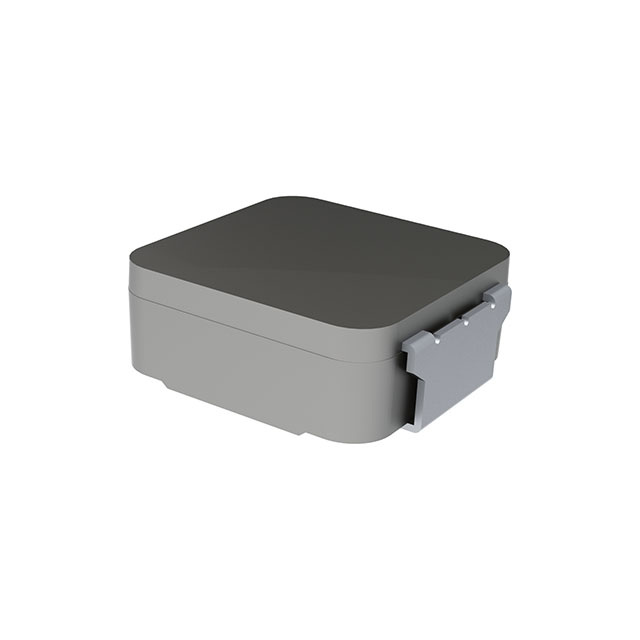

 KEMET | 0.394 in | 10 mm | 0.425 in | 10.8 mm | Shielded | Nonstandard | 4 A | 4.5 MHz | 3 A | Surface Mount | 182.6 mOhm | 180 °C | -55 C | 100 kHz | 47 µH | 20 % | Metal Composite | AEC-Q200 | 4 mm | 0.157 in |
