PKE322 Series

Catalog

DC DC CONVERTER +/-12V 15W

Part	Voltage - Output 2	Features	Voltage - Isolation	Approval Agency	Number of Outputs	Package / Case	Applications	Type	Efficiency	Power (Watts)	Control Features	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Voltage - Input (Max) [Max]	Current - Output (Max)

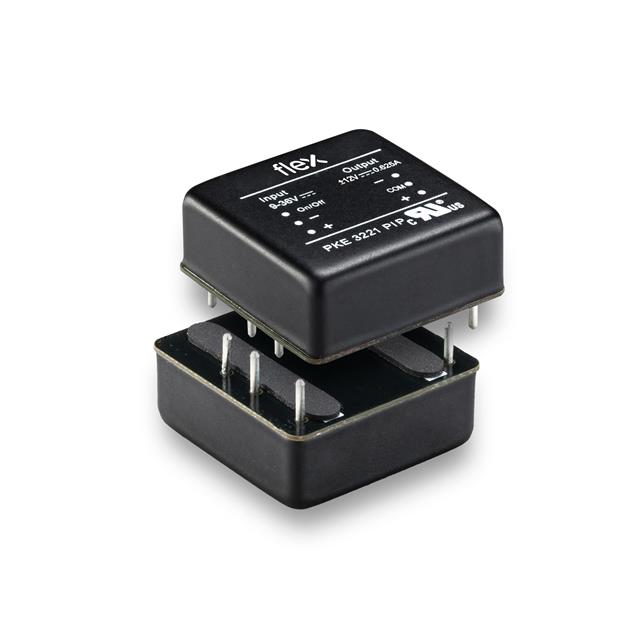

Flex Power Modules PKE3221PI	-12 V	Adjustable Output Remote On/Off	1.5 kV	CB CSA IEC TUV UL	2	6-DIP Module	ITE (Commercial)	Isolated Module	90 %	15 W	Active Low Enable	9 V	625 mA	625 mA	62368-1	-40 °C	115 °C	Through Hole	25.4 mm	0.43 in	10.8 mm	1 in	25.4 mm	1 "	12 V	36 V
Flex Power Modules PKE3225PI	-15 V	Adjustable Output Remote On/Off	1.5 kV	CB CSA IEC TUV UL	2	6-DIP Module	ITE (Commercial)	Isolated Module	89 %	15 W	Active Low Enable	9 V			62368-1	-40 °C	115 °C	Through Hole	25.4 mm	0.43 in	10.8 mm	1 in	25.4 mm	1 "	15 V	36 V	500 mA
