90204 Series
Manufacturer: Preci-Dip
Beta
⌘K

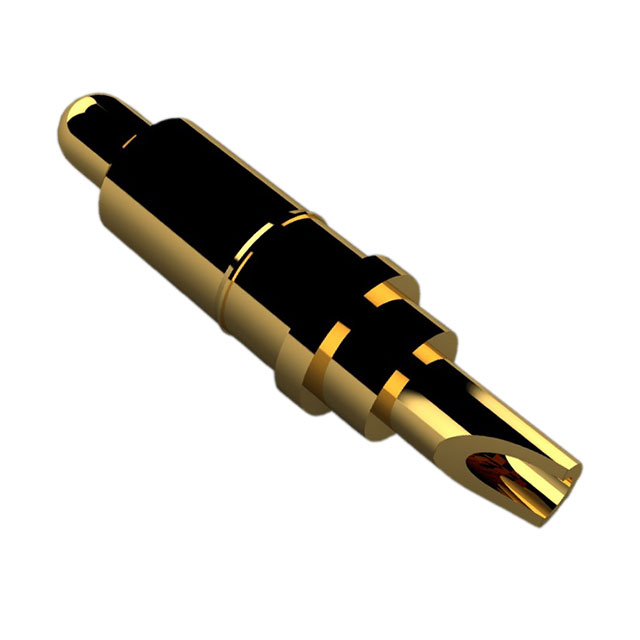

CONTACT SPRING LOADED SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Contact Material | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Mating Cycles | Operating Force - Mid Compression | Mounting Type | Minimum Working Height [Min] | Minimum Working Height [Min] | Operating Force - Initial | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 0.042 in | 1.07 mm | Brass Alloy | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | 0.061 " | 1.55 mm | 40000 | 61.18 gf | Solder Cup Through Hole | 0.142 in | 3.6 mm | 25.49 gf | 5 mm | 0.197 in | 3 A | Gold |
