MEAS LM Series

Catalog

5PSIG LIQUID LEVEL PRESSURE TRANSDUCER

Part	Port Style	Accuracy	Termination Style	Package / Case	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Pressure	Operating Pressure	Maximum Pressure	Maximum Pressure	Output Type	Pressure Type	Features	Output [Max]	Output [Min]	Port Size	Port Size	Port Size	Maximum Pressure [Max]	Maximum Pressure [Max]
TE Connectivity AMP Connectors LM31-00000F-005PG	Threaded	1 %	Cable	Cylinder	Industrial Automation	-20 ░C	70 °C	4.75 V	5.25 V	5 PSI	34.47 kPa	15 PSI	103.42 kPa	Analog Voltage	Vented Gauge	Temperature Compensated	4.5 V	0.5 V	Male NPT	0.5 in	0.5 in
TE Connectivity AMP Connectors LM31-00000F-015PG	Threaded	1 %	Cable/Wire Leads	Cylinder	Industrial Automation	-20 ░C	70 °C	4.75 V	5.25 V	15 PSI	103.42 kPa	45 PSI	310.26 kPa	Analog Voltage	Vented Gauge	Amplified Output Temperature Compensated	4.5 V	0.5 V	Male NPT	0.5 in	0.5 in

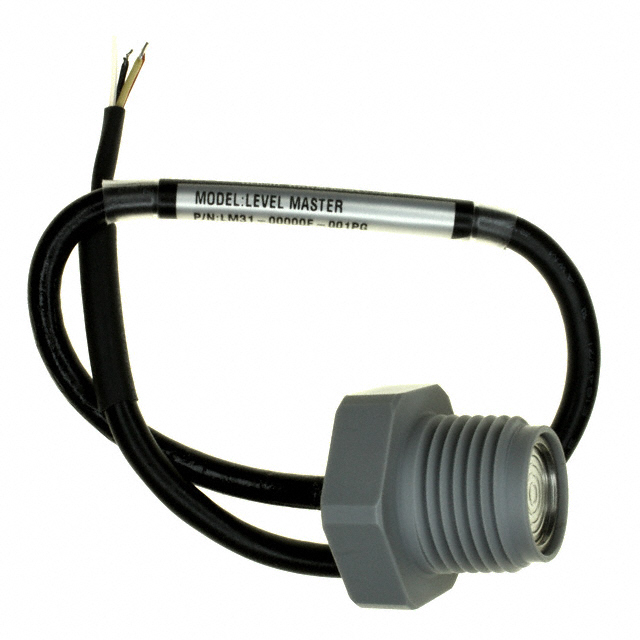

TE Connectivity AMP Connectors LM31-00000F-001PG	Threaded	1 %	Cable	Cylinder	Industrial Automation	-20 ░C	70 °C	4.75 V	5.25 V	1 PSI	6.89 kPa			Analog Voltage	Vented Gauge	Temperature Compensated	4.5 V	0.5 V	Male NPT	0.5 in	0.5 in	3 PSI	20.68 kPa

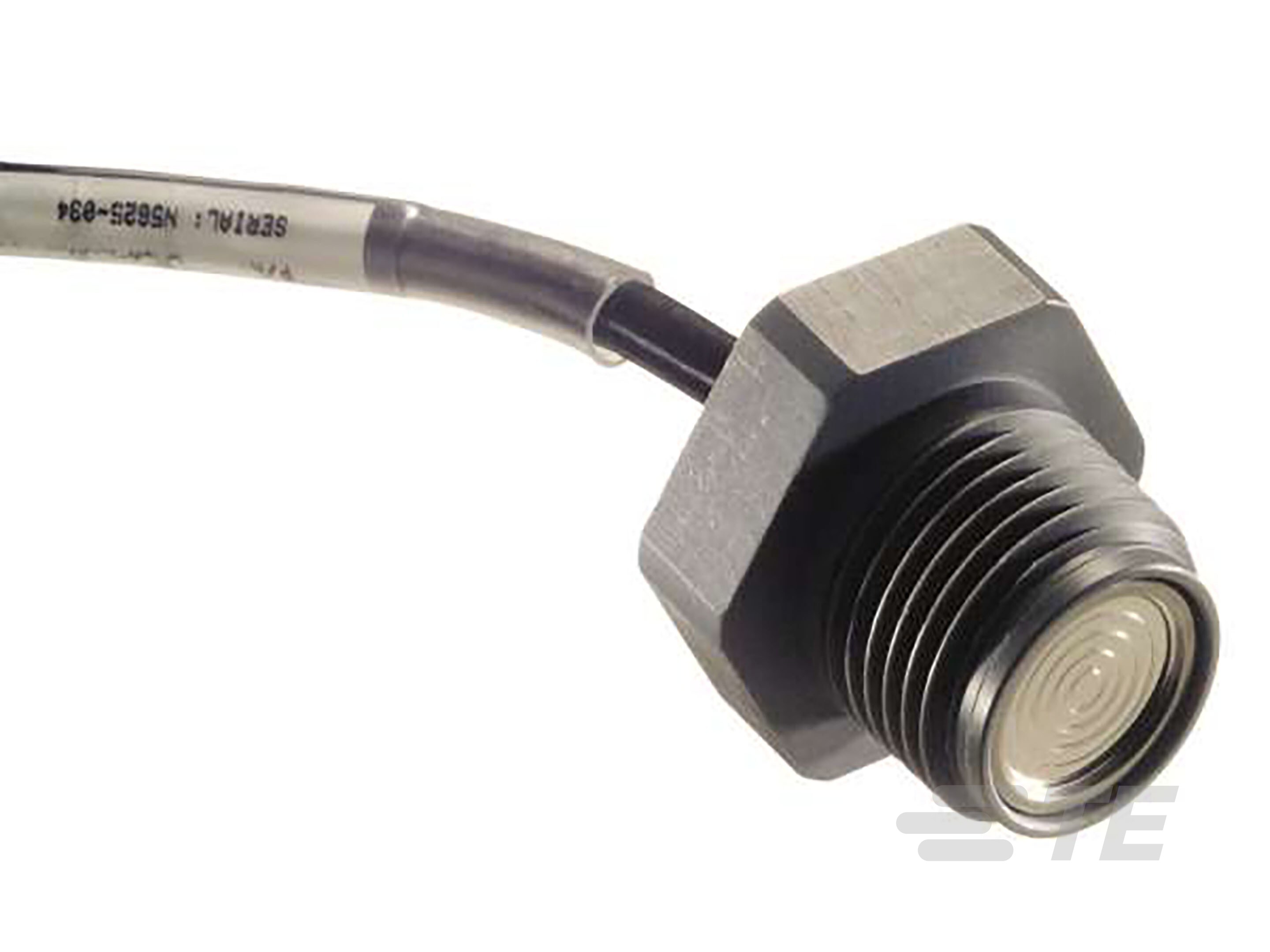

TE Connectivity AMP Connectors LM31-00000F-002PG	Threaded	0.3 %	Cable/Wire Leads	Cylinder	Industrial Automation	-20 ░C	70 °C	4.75 V	5.25 V	2 PSI	13.79 kPa	20 PSI	137.9 kPa	Analog Voltage	Vented Gauge	Temperature Compensated	5 V	0.5 V	Male NPT	0.5 in	0.5 in
