MAC71 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

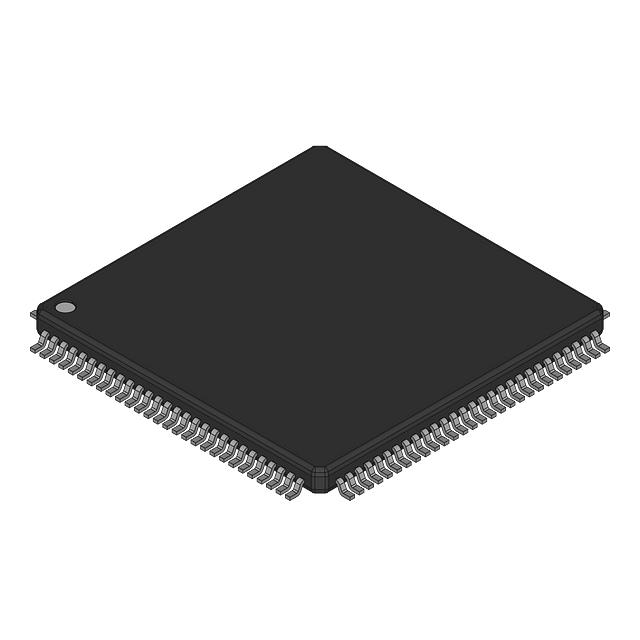

IC MCU 32BIT 512KB FLASH 144LQFP

Part	Package / Case	Number of I/O	Core Processor	Core Size	Speed	Data Converters [custom]	Data Converters [custom]	Data Converters [custom]	Program Memory Size	Peripherals	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Oscillator Type	EEPROM Size	Connectivity	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Program Memory Type	Data Converters	RAM Size
Freescale Semiconductor - NXP MAC7111VPV50	144-LQFP	112	ARM7®	32-Bit Single-Core	50 MHz	8	16	10	512 KB	DMA POR	105 °C	-40 °C	Surface Mount	Internal	32 K	CANbus EBI/EMI I2C SCI SPI	144-LQFP (20x20)	5.5 V	2.35 V	FLASH
Freescale Semiconductor - NXP MAC7131MVM40	208-BGA	128	ARM7®	32-Bit Single-Core	40 MHz				512 KB	DMA POR	125 °C	-40 °C	Surface Mount	Internal	32 K	CANbus EBI/EMI I2C SCI SPI	208-BGA (17x17)	5.5 V	2.35 V	FLASH	10b 32x8
Freescale Semiconductor - NXP MAC7112MAG40	144-LQFP	112	ARM7®	32-Bit Single-Core	40 MHz	8	16	10	256 KB	DMA POR	125 °C	-40 °C	Surface Mount	Internal	32 K	CANbus I2C SCI SPI	144-LQFP (20x20)	5.5 V	2.35 V	FLASH		16 K
Freescale Semiconductor - NXP MAC7112MPV40	112-LQFP	112	ARM7TDMI-S	32-Bit Single-Core	40 MHz	8	16	10	256 KB	DMA POR	125 °C	-40 °C	Surface Mount	Internal	32 K	CANbus EBI/EMI I2C SCI SPI	112-LQFP (20x20)	2.75 V	2.35 V	FLASH		16 K
Freescale Semiconductor - NXP MAC7116VAG50	144-LQFP	112	ARM7®	32-Bit Single-Core	50 MHz	8	16	10	1 MB	DMA POR	105 °C	-40 °C	Surface Mount	Internal	32 K	CANbus EBI/EMI I2C SCI SPI	144-LQFP (20x20)	5.5 V	2.35 V	FLASH
Freescale Semiconductor - NXP MAC7131MVM40	208-BGA	128	ARM7TDMI-S	32-Bit Single-Core	40 MHz				512 KB	DMA POR	125 °C	-40 °C	Surface Mount	Internal	32 K	CANbus EBI/EMI I2C SCI SPI	208-BGA (17x17)	2.75 V	2.35 V	FLASH	10b 32x8
Freescale Semiconductor - NXP MAC7111MAG40	144-LQFP	112	ARM7®	32-Bit Single-Core	40 MHz	8	16	10	512 KB	DMA POR	125 °C	-40 °C	Surface Mount	Internal	32 K	CANbus EBI/EMI I2C SCI SPI	144-LQFP (20x20)	5.5 V	2.35 V	FLASH
Freescale Semiconductor - NXP MAC7121MPV50	112-LQFP	85	ARM7TDMI-S	32-Bit Single-Core	50 MHz	8	16	10	512 KB	DMA POR	125 °C	-40 °C	Surface Mount	Internal	32 K	CANbus EBI/EMI I2C SCI SPI	112-LQFP (20x20)	2.75 V	2.35 V	FLASH
Freescale Semiconductor - NXP MAC7131MVF40	208-BGA	128	ARM7®	32-Bit Single-Core	40 MHz				512 KB	DMA POR	125 °C	-40 °C	Surface Mount	Internal	32 K	CANbus EBI/EMI I2C SCI SPI	208-BGA (17x17)	5.5 V	2.35 V	FLASH	10b 32x8
Freescale Semiconductor - NXP MAC7121MAG40	112-LQFP	85	ARM7®	32-Bit Single-Core	40 MHz	8	16	10	512 KB	DMA POR	125 °C	-40 °C	Surface Mount	Internal	32 K	CANbus I2C SCI SPI	112-LQFP (20x20)	5.5 V	2.35 V	FLASH
